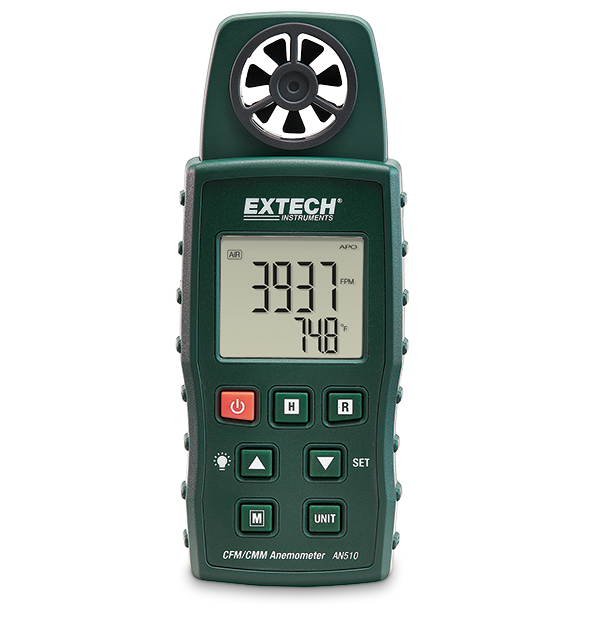

Extech AN510
CMM/CFM Anemometer + Type-K
The Extech AN510 is a convenient 4-in-1 Anemometer that measures air velocity, air flow, air temperature, and Type-K temperature. Includes a built-in low friction ball bearing mini vane wheel for high accuracy. The Type-K temperature probe function measures surface temperature up to 1300°C (2372°F). It features large dual LCD with backlighting, data hold, and min/max function.
规格
| 一般参数 | |
|---|---|
| 气量 (CFM) 最大分辨率 | 0.001 CFM |
| 温度（K 型）最大分辨率 | -148°F to 2372°F (-100°C to 1300°C) |
| 温度（N 型） | ±(0.4% + 1.8°F/1°C) |
| 温度（N 型）基本精度 | 0.1° |
| 温度（空气） | 32 to 122°F (0 to 50°C) |
| 温度（空气）基本精度 | 0.1° |
| 温度（空气）最大分辨率 | ±2.5°F (±1.2°C) |
| 风速 (ft/min) | 80 to 3937 ft/min |
| 风速 (ft/min) 基本精度 | ±3% full scale |
| 风速 (ft/min) 最大分辨率 | 1ft/min |
| 风速 (km/h) | 1.4 to 72km/h |
| 风速 (km/h) 基本精度 | ±3% full scale |
| 风速 (km/h) 最大分辨率 | 0.1km/h |
| 风速 (m/s) | 0.4 to 20m/s |
| 风速 (m/s) 基本精度 | ±3% full scale |
| 风速 (m/s) 最大分辨率 | 0.1m/s |
| 风速 (mph) | 0.9 to 44.7MPH |
| 风速 (mph) 基本精度 | ±3% full scale |
| 风速 (mph) 最大分辨率 | 0.1MPH |
| 风速（节） | 0.8 to 38.8 knots |
| 风速（节）基本精度 | ±3% full scale |
| 风速（节）最大分辨率 | 0.1knots |
| 风量 (CFM) | 0.847 to 1,271,300 CFM |
| 风量 (CMM) | 0.024 to 36,000 CMM |
| 风量 (CMM) 最大分辨率 | 0.001 CMM |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 叶片 | 1" (27mm) |
| 尺寸 | 5.5 × 1.8 ×1.2" (141 × 45 × 20mm) |
| 电源 | 3 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 5.6oz (160g) |
资源和支持
Datasheet
Extech AN510 Datasheet
User Manual
Extech AN510 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
