Discontinued

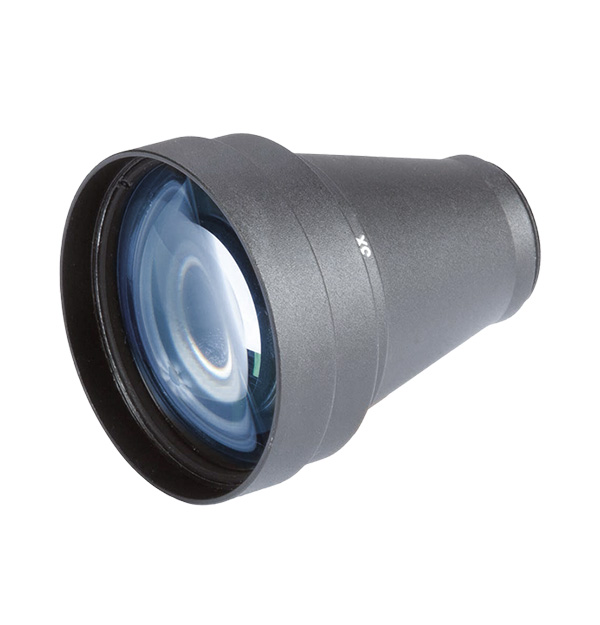

3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 3x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics.
规格
| 传感器与光学 | |
|---|---|
| 分辨率 | ≤4.1" |
| 放大率 | 3x |
| 视场角[角度] | ≥11°30' |
| 环境与认证 | |
|---|---|
| 存储温度 | -57°С to +65°C (-65°F to +149°F) |
| 防水 | 1m / 30 min |
| 文件存储和通讯 | |
|---|---|
| 连接螺纹 | M28 x 0.75 |
| 系统概览 | |
|---|---|
| 光透射（400至900 nm） | ≥ 90% |
| 物理 | |
|---|---|
| 尺寸（不带镜头盖） | Ø61.2 х 73.5mm |
| 重量 | 180 g (0.39 lbs) |
资源和支持
Datasheet
3x Afocal Lens 22 Datasheet
