Discontinued

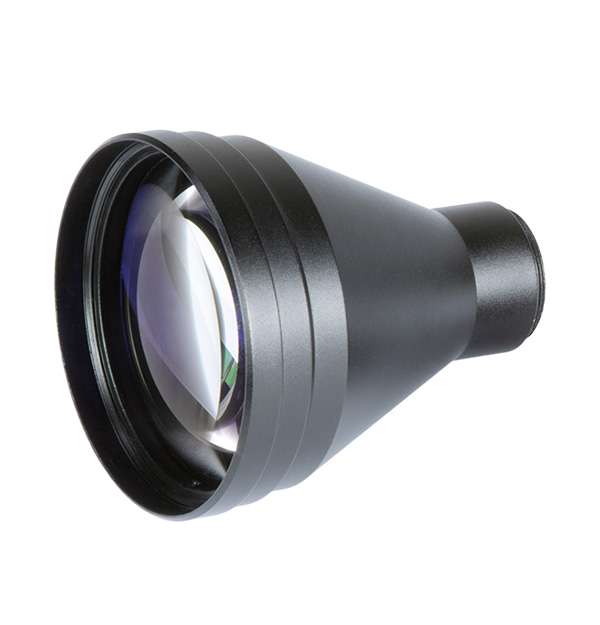

5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 5x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics.
规格
| 传感器与光学 | |
|---|---|
| 分辨率 | ≤3.65" |
| 放大率 | 5x |
| 视场角[角度] | ≥ 7°30' |
| 环境与认证 | |
|---|---|
| 存储温度 | -57° to +65°C (-70° to 149°F) |
| 防水 | 1m / 30 min |
| 文件存储和通讯 | |
|---|---|
| 连接螺纹 | M28 x 0.75 |
| 系统概览 | |
|---|---|
| 光透射（400至900 nm） | ≥ 90% |
| 物理 | |
|---|---|
| 尺寸（不带镜头盖） | Ø75.5 х 85mm |
| 重量 | 325 g (0.71 lbs) |
资源和支持
Datasheet
5x Afocal Lens Datasheet
