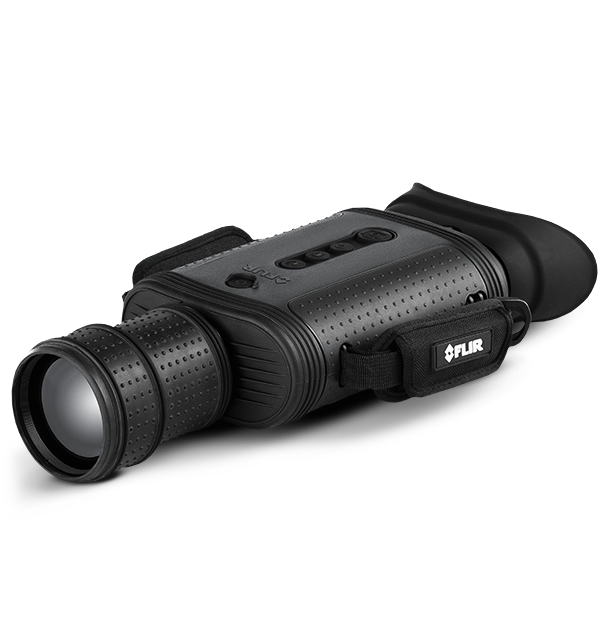

FLIR BHS-Series
Bi-ocular Thermal Camera
The FLIR BHS-Series biocular camera uses cutting-edge thermal imaging technology that makes images from differences in heat, giving law enforcement officers a clear tactical advantage, day and night. Officers see more and see farther with thermal compared to other night vision technologies. Plus, FLIR’s wide range of tactical optics is combat-proven to keep officers safer. The FLIR BHS-Series is a must for extended patrols, covert surveillance, critical infrastructure protection, and high-threat security missions.
规格
| Highlighted | |
|---|---|
| 视场角 | 13° x 10° |
| 传感器与光学 | |
|---|---|
| 探测器类型 | 320 × 240 VOx Microbolometer |
| 视场角 | 13° x 10° |
| 环境与认证 | |
|---|---|
| 存储温度 | -40°F - 167°F (-40°C - 75°C) |
| 工作温度 | -4°F - 140°F (-20°C – 60°C) |
| 防护等级 | IP-67 (with lens attached only) |
| 电源 | |
|---|---|
| 启动时间 | < 2 seconds |
| 电池寿命 | 4-5 Hours |
| 电池寿命（备用） | 100+ Hours |
| 电池类型 | 4 Rechargeable AA NiMH Batteries (included) |
| 文件存储和通讯 | |
|---|---|
| 外部视频[通过RCA插口] | 320 × 240 NTSC or PAL |
| 视频存储 | SD or SDHC Card |
| 静止图像存储 | SD or SDHC Card |
| UI-UX | |
|---|---|
| 取景器视频输出[9 Hz刷新率] | 30 Hz (320 × 240) |
| 图像优化 | FLIR Proprietary Digital Detail Enhancement |
| 极性 | White Hot, Black Hot |
| 视频格式 | JPEG/AVI (320 x 240 resolution) |
| 静止图像格式 | JPEG/AVI (320 x 240 resolution) |
| 系统概览 | |
|---|---|
| 保修 | 1-year Standard; 3/10-year with Registration |
| 尺寸 | Height: 2.2" Diameter: 3.1" |
| 尺寸（长×宽×高） | 11.0" x 6.5" x 2.63" |
| 电子变焦 | 2× |
| 物理 | |
|---|---|
| 重量[不带镜头] | 2.20 lbs |
| 配件 | |
|---|---|
| 随附配件 | BHS-X or BHS-XR Series Handheld Thermal Camera (lens purchased separately), Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA NiMH Batteries, AC Power Adapter/Charger, Neck Lanyard, USB Cable, Video Output Cable, Hard Carrying Case, Product CD with Ops Manual |
资源和支持
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
