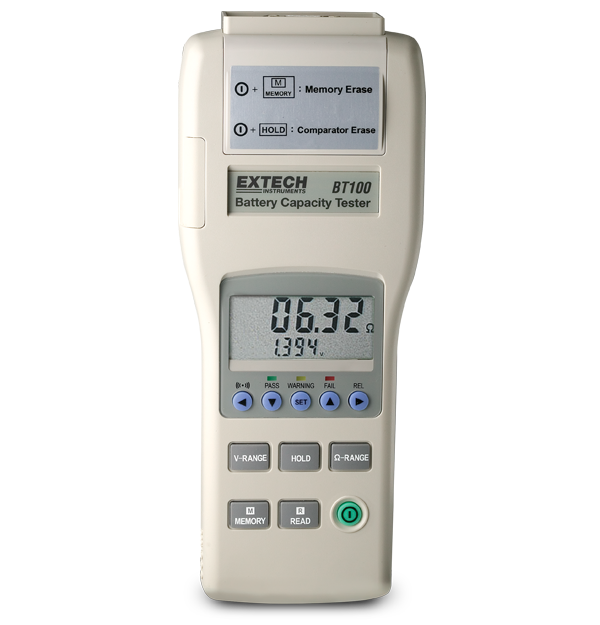

Extech BT100
电池电量测试仪的支持服务
Extech BT100 是一款电池电量测试仪。产品可用于快速轻松地检测电池的状况。作为一款交流毫欧姆计，该测试仪可在电池使用过程中测量直流电压和交流电阻，有助于节省重复测试或大量电池测试的试验时间。
规格
| 一般参数 | |
|---|---|
| DC Voltage | 4V、40V |
| DC Voltage Basic Accuracy | ±（读数的 0.1% ±6 位数） |
| DC Voltage Max Resolution | 1mV、10mV |
| Input Voltage | 最大 50VDC |
| Memory | 手动：999 个数据组；连续：9600 个数据组 |
| Resistance | 40mΩ、400mΩ、4Ω、40Ω |
| Resistance Max Resolution | 10 µΩ、100 µΩ、1mΩ、10mΩ |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 250 × 100 × 45mm |
| Power | 6 节 AA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 500g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech BT100 Software
Datasheet
Extech BT100 Datasheet
Certification
Extech BT100 Declaration of Conformity
User Manual
Extech BT100 User Manual
