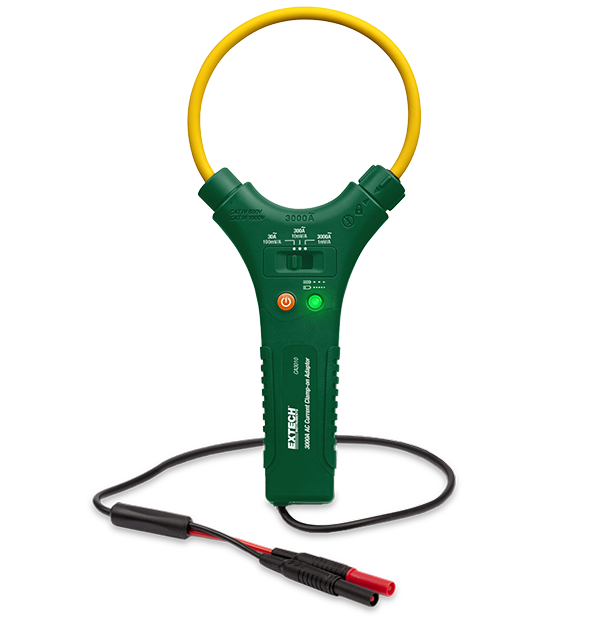

Extech CA3010
3000A AC Flex Clamp-on Adaptor
The Extech CA3010 is a 3000 A AC Flex Clamp-on Adaptor for multimeters and clamp on meters with standard sized banana plugs. The CA3010 is a 25.4 cm (10 in) flexible clamp capable of measuring AC currents up to 3000 A. Complete with built-in flex clamp cable, 2 m (6.6ft) lead with banana plugs, and two AAA batteries. UL listed with a CAT IV 600 V safety rating.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output) |
| 交流电流基本精度 | ±3% full scale (45 to 500Hz) |
| 交流电流最大分辨率 | 0.01A |
| 钳口尺寸 | 10" (25.4cm) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 11 × 4.7 × 1" (280 × 120 × 25mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, UL, NIST |
| 重量 | 6oz (170g) |
资源和支持
Datasheet
Extech CA3010-CA3018 Datasheet
User Manual
Extech CA3010 CA3018 User Manual GB
Certification
Extech CA3010 Declaration of Conformity
