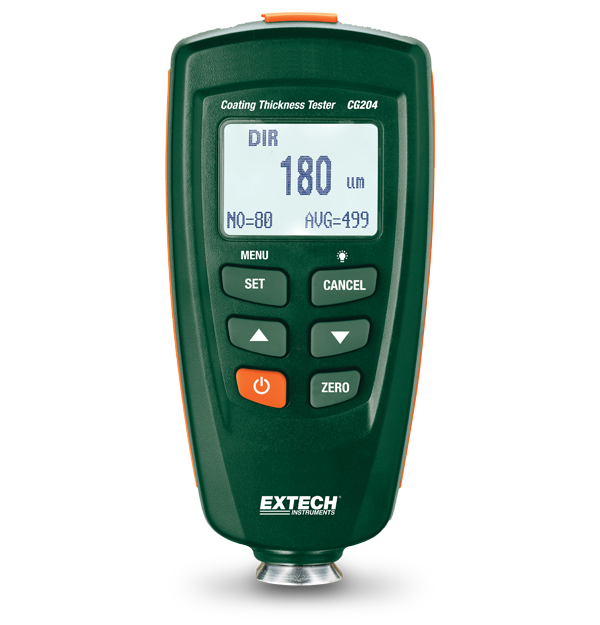

Extech CG204
涂层测厚仪
Extech CG204 是一款便携式测量仪，专为非侵入式涂层厚度测量而设计，可自动识别黑色金属和有色金属基材。该测厚仪使用双重技术来指示黑色金属（磁感应测量）和有色金属（涡流测量）基材。它具有单次和持续两种测量模式，以及直接和分组两种工作模式、400 个读数的存储器容量和用户可编程高/低警报。CG204 配有两节 AAA 电池、USB 电缆、软件、校准铁、校准铝、精度标准、便携袋，以及用户手册。
规格
| 一般参数 | |
|---|---|
| Coating Thickness [Ferrous] | 0 至 1250µm |
| Coating Thickness [Ferrous] Basic Accuracy | ±3% |
| Coating Thickness [Ferrous] Max Resolution | 0.1µm |
| Coating Thickness [Non_Ferrous] | 0 至 1250µm |
| Coating Thickness [Non_Ferrous] Basic Accuracy | ±3% |
| Coating Thickness [Non_Ferrous] Max Resolution | 0.1µm |
| Min Curvature Radius [Ferrous] | 1.5mm |
| Min Curvature Radius [Non_Ferrous] | 3mm |
| Min Diameter [Ferrous] | 7mm |
| Min Diameter [Non_Ferrous] | 5mm |
| Min Thickness [Ferrous] | 0.5mm |
| Min Thickness [Non_Ferrous] | 0.3mm |
| Working Principle [Ferrous] | 磁感应 |
| Working Principle [Non_Ferrous] | 涡流 |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 120 × 6 × 32mm |
| Power | 2 节 AAA 电池 |
| Warranty | 2 年 |
| Weight | 175g |
