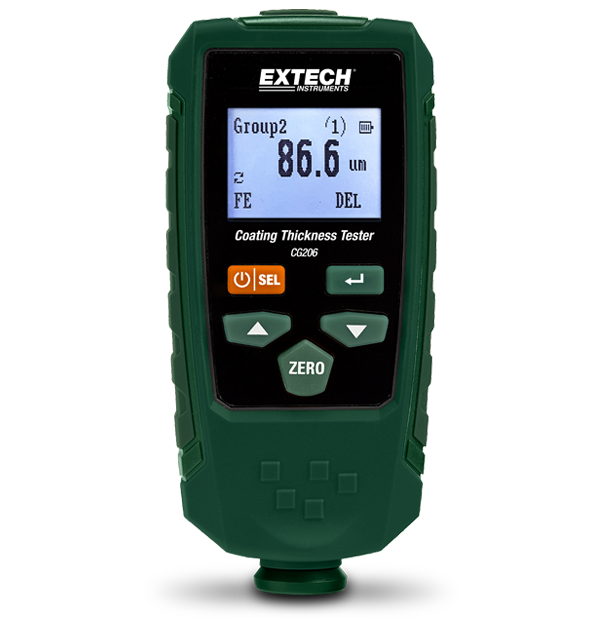

Extech CG206

涂层测厚仪

采用双重技术，可自动识别黑色和有色金属基材，无需猜测材料。可通过快速的单手操作，对不同表面上的涂层厚度进行无损测量。

规格

一般参数
Coating Thickness [Ferrous] 0 至 1350µm
Coating Thickness [Ferrous] Basic Accuracy ±2.5%
Coating Thickness [Ferrous] Max Resolution 0.1µm
Coating Thickness [Non_Ferrous] 0 至 1350µm
Coating Thickness [Non_Ferrous] Basic Accuracy ±2.5%
Coating Thickness [Non_Ferrous] Max Resolution 0.1µm
Min Curvature Radius [Ferrous] 1.5mm
Min Curvature Radius [Non_Ferrous] 3mm
Min Diameter [Ferrous] 7mm
Min Diameter [Non_Ferrous] 5mm
Min Thickness [Ferrous] 0.5mm
Min Thickness [Non_Ferrous] 0.3mm
Working Principle [Ferrous] 磁感应
Working Principle [Non_Ferrous] 涡流
其他详情
Certifications CE
Dimensions 113.5 × 54 × 27mm
Power 2 节 AAA (1.5V) 电池
Warranty 2 年
Weight 110g
