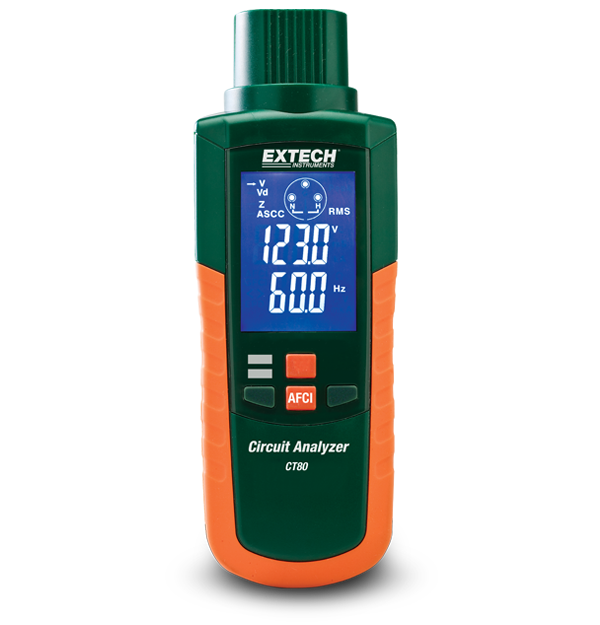

Extech CT80
AFCI, GFCI and AC Circuit Analyzer
Circuit and wiring issues can introduce shock hazards and can compromise the performance of machinery and equipment. The Extech CT80 is a AFCI, GFCI, and AC Circuit Analyzer which covers outlet load handling and outlet tester functions. Complete with AC test cord (standard North American 3-prong plug).
规格
| 一般参数 | |
|---|---|
| 交流电压 | 85.0 to 250.0V |
| 压降 | 0.1 to 99.9% |
| 峰值线路电压 | 350.0V |
| 频率 | 45.0 to 65.0Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII - 300V |
| 尺寸 | 8 × 2.8 × 2" (203.2 × 71.1 × 50.8mm) |
| 认证 | ETL |
| 重量 | 11.2oz (317.5g) |
资源和支持
User Manual
Extech CT80 User Manual
Datasheet
Extech CT80 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
