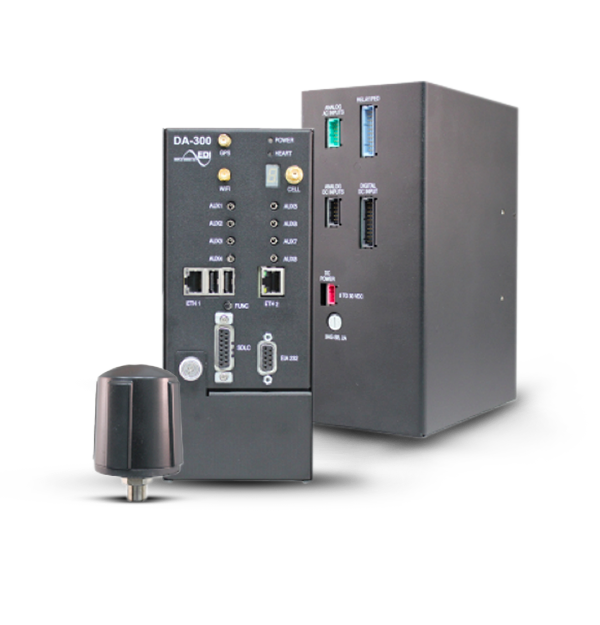

Acyclica DA-300
Hardware & Software Solution
The DA-300 provides unprecedented abilities to monitor your infrastructure. From the components within your cabinets, up to the performance of your road network as a whole, you have the data you need to optimize the performance of your infrastructure. This ground-breaking piece of hardware and its accompanying software is the result of years of collaboration between Acyclica, Eberle Design Inc., and Reno A&E.
规格
| 系统概览 | |
|---|---|
| 操作系统 | Linux - Ubuntu 12.04.2 LTS kernel ver. 3.15.3 |
| 通讯 | |
|---|---|
| EIA-232 | Yes |
| iCITE | Yes - used to connect to iCITE G2 |
| RS-485 | Yes - standard up to 32 channels of input |
| SDLC | Yes - standard (TS2 or TS2 Type 2 cabinets only) |
| USB | Standard - 2 ports |
| WiFi | Yes - travel time (receive only - cannot be used as a WLAN) |
| 以太网 | Standard - 2 ports (10/100 Base-T) |
| 天线 | Yes - 5 band (Cellular, GPS, Wifi, BT and DSRC) |
| 数字输入 | 20 (16 x 16 DC; 4 x 24 VDC; 16 detectors; 4 peds) |
| 数字输出 | 3 (either Normally Open and Normally Closed 5A relay) |
| 模拟输入 | 16 (8 x 20 VAC; 8 x 24 VDC) |
| 端口 | Standard (RS-485 inputs from Communicating Detectors) |
| 蓝牙 | No (available as an option) |
| 蜂窝调制解调器 | Yes - 3G/LTE/GSM/CPRS (Standard); 4G (Optional) |
| 闪存盘 | Yes |
| 电气 | |
|---|---|
| 备用电池 | Yes - allows communications and remote logging up to ~5 hours |
| 实时时钟 | Yes |
| 支持太阳能 | Yes |
| 电池 | Non-spillable sealed lead-acid 6 VDC 4.5Ah |
| 电源输入 | 8 - 28 VDC (2A 250V 5mm x 20mm fast-blo fuse) |
| 环境 | |
|---|---|
| 工作温度 | -40° to 176° F / -40° to 80° C / Standard industrial temp. range |
| 湿度 | 0 - 95% non-condensing |
| 成像与光学 | |
|---|---|
| 时间同步 | Normally Open and Normally Closed with user selectable time |
| 机械 | |
|---|---|
| GPS[指南针] | Yes - geolocation with Time Sync |
| 尺寸 | 5.487" D x 8.18" H x 3.5" W (13.936 cm x 20.772 cm x 8.89 cm) |
| 重量 | 3.6 lbs / 1.62 kg |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
