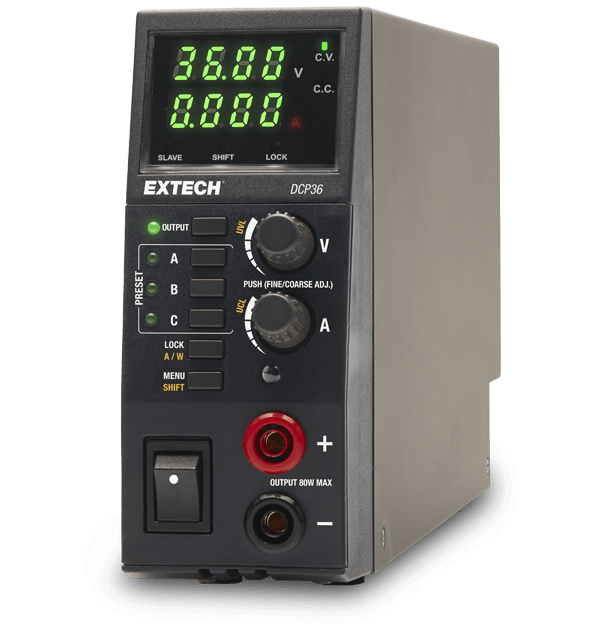

Extech DCP36
80W 交换式直流电源
Extech’的 DCP36 电源具有 80W 恒定功率拓扑结构，并具有自动量程的电压和电流输出。这款小巧轻便的装置便于携带，是空间有限的狭小工作台的理想选择。它采用 4 位数 LED 显示屏、3 个可编程预设、前/后输出端子和远程感应，可在负载点精准施加电压。
规格
| 一般参数 | |
|---|---|
| Line Current Regulation | ≤10mA |
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 至 5A；自动量程，最大输出功率为 80W (E × I = ≤80W) |
| Output Current Basic Accuracy | ±（0.5% + 5 个计数） |
| Output Voltage | 0.5 至 36V |
| Output Voltage Basic Accuracy | ±（0.5% + 5 个计数） |
| Ripple and Noise | ≤35m Vp-p |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 330 × 127 × 53.5mm |
| Warranty | 2 年 |
| Weight | 1.9 kg |
