Discontinued

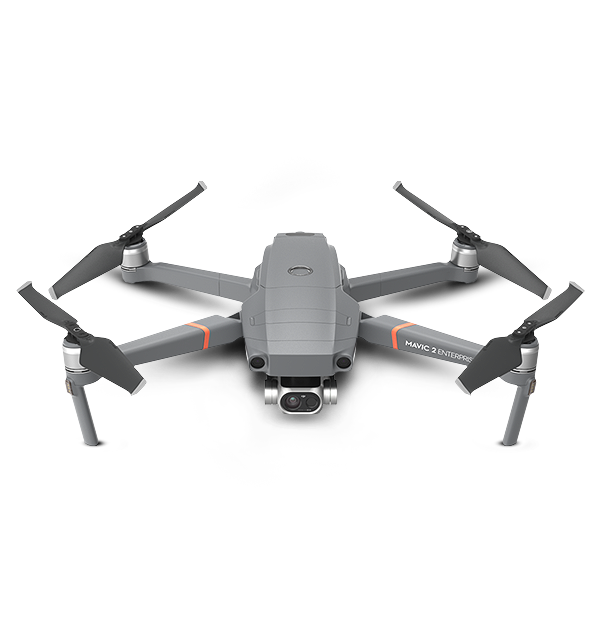

DJI Mavic 2 Enterprise Dual

UAS Thermal Imaging Kit

Designed to empower a new generation of workers, the Mavic 2 Enterprise DUAL with thermal imaging is the ultimate expression of a tool that delivers beyond expectation to meet current workplace challenges and future demands. It combines gimbal technology, mobile app integration, and video transmission to provide reliable aerial thermal imaging to a wide range of industries.

An Aerial View is More Accessible than Ever Before
The Mavic Dual with FLIR thermal serves as an eye in the sky for first responders and building inspectors - while using >1 ft² of space
See invisible differences in heat like no one else, so you can find lost people and animals, inspect buildings for moisture intrusion, find hidden roof damage, and much more.
Visualize scenarios in realtime with FLIR MSX®, monitor and measure objects with the thermal spot meter, and take area measurements - all so you can make the most informed decisions.

规格

成像与光学
万向架[红外和可见光] Fixed mount
分辨率-热成像 160 × 120 native resolution
可见光照片/视频格式 Photo: JPEG/DNG (Raw) Video: MP4, MOV (MPEG-4 AVC/H.264, HEVC/H.264)
场景范围[低增益] -10°C to 400°C (14°F to 752°F)
场景范围[高增益] -10°C to 140°C (14°F to 284°F)
帧频-热成像 9 Hz
水平视场角 热成像 57°
热像仪 Uncooled microbolometer, 8–14 µm
热成像照片/视频格式 Photo: JPEGs Video: MP4, MOV (MPEG-4 AVC/H.264 Radiometric file save not supported)
红外热像仪 FLIR Lepton, 160 × 120
通讯与数据存储
文件存储 Supports microSD up to 128 GB (UHS-1 Speed Grade 3 required)
电源
航空蓄电池 3850 mAh, 15.4 V LiPo 4S
常规
重量[含电池] 1.1 kg
飞机模型 DJI Mavic 2 Dual
配件
含阻容单元1 DJI Mavic remote
随附平板电脑接口 NA

资源和支持

User Manual

Mavic 2 Enterprise Series User Manual

下载

User Manual

Mavic 2 Enterprise Series In The Box

下载

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
