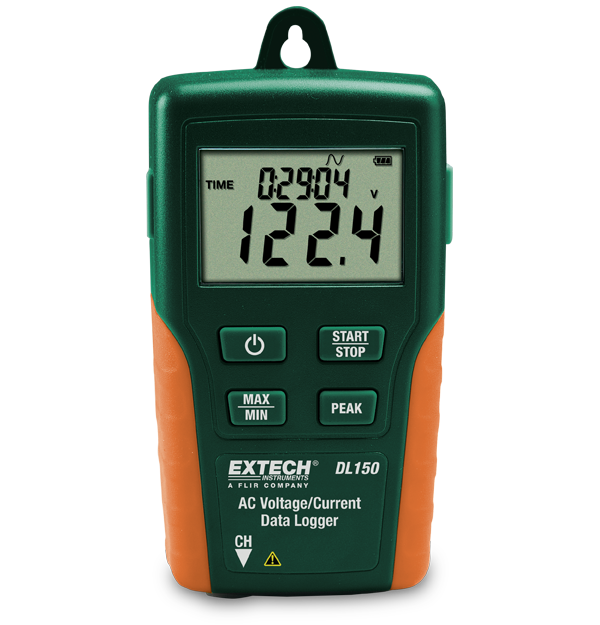

Extech DL150
True RMS AC Voltage/Current Datalogger
The Extech DL150 is a True RMS AC Voltage and Current Data Logger. Data log up to 100,000 readings of TRMS AC Voltage (600 Volt) or Current (200 Amp) with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, min/max, and if the user settable high/low alarms have been exceeded. Readings can be downloaded to your PC via the USB interface. Featuring normal, peak, and capture (user specified trigger level) recording modes. Complete with current clamp, test leads, alligator clips, software, USB cable, 110-Volt AC Adapter, and four AAA batteries.
规格
| 一般参数 | |
|---|---|
| PC接口 | USB |
| 交流电压 | 10 to 600V |
| 交流电压基本精度 | ±(1.5% of reading ±1V) |
| 交流电压最大分辨率 | 0.1V |
| 交流电流 | 10 to 200A |
| 交流电流基本精度 | ±(2% of reading ± 1A) |
| 交流电流最大分辨率 | 0.1A |
| 内存 | 100,000 points |
| 真有效值 | Yes |
| 采样率 | 1 second to 24 hours |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| 电源 | 4 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 8.7oz (248g) |
