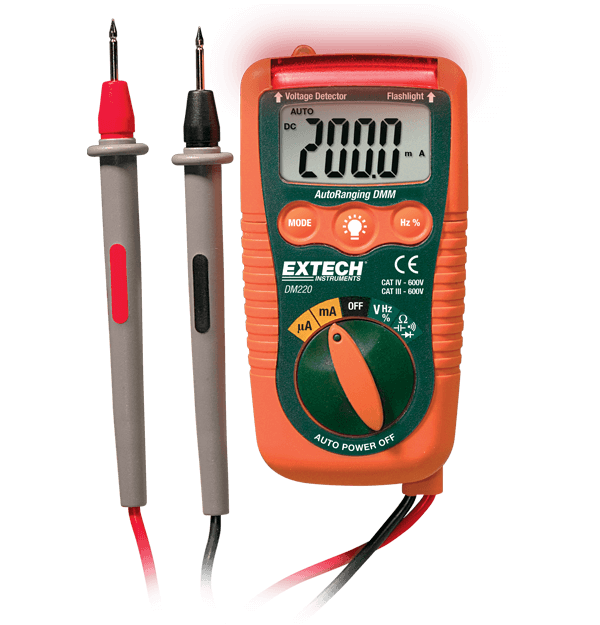

Extech DM220
便携式迷你数字万用表（带非接触式试电笔）
这款便携式迷你数字万用表采用大尺寸高对比度 4000 计数液晶显示屏、可识别带电电路的非接触式电压笔，以及内置的照明灯。它可测量交流/直流电压、交流/直流电流、电阻、频率、占空比，并可进行二极管测试，并配备导通性蜂鸣器。其他功能包括：用于集成测试引线的内置存储夹、提供额外保护的双模外壳、超范围和低电量提示。配有测试引线和 2 节 AAA 电池。
规格
| 一般参数 | |
|---|---|
| AC Current | 200mA |
| AC Current Basic Accuracy | ±2.5%AC |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.5% AC |
| AC Voltage Max Resolution | 1mVAC |
| Capacitance | 200µF |
| Capacitance Max Resolution | 0.001nF |
| Continuity | 是 |
| DC Current | 200mA |
| DC Current Basic Accuracy | ±2.5%DC |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.8%DC |
| DC Voltage Max Resolution | 0.1mVDC |
| Diode Test | 是 |
| Duty Cycle | 0.5 至 99％ |
| Duty Cycle Basic Accuracy | ±（读数的 2.0% + 5 位数） |
| Duty Cycle Max Resolution | 0.50% |
| Frequency | 10kHz |
| Frequency Basic Accuracy | ±2.0% |
| Frequency Max Resolution | 0.001Hz |
| Non_Contact Voltage [NCV] Detector | 100 至 600VAC |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 120 × 55 × 540mm |
| Power | 2 节 AAA (1.5V) 电池 |
| Safety Category | CAT III-1000V、CAT IV-600V |
| Warranty | 2 年 |
| Weight | 145g |
