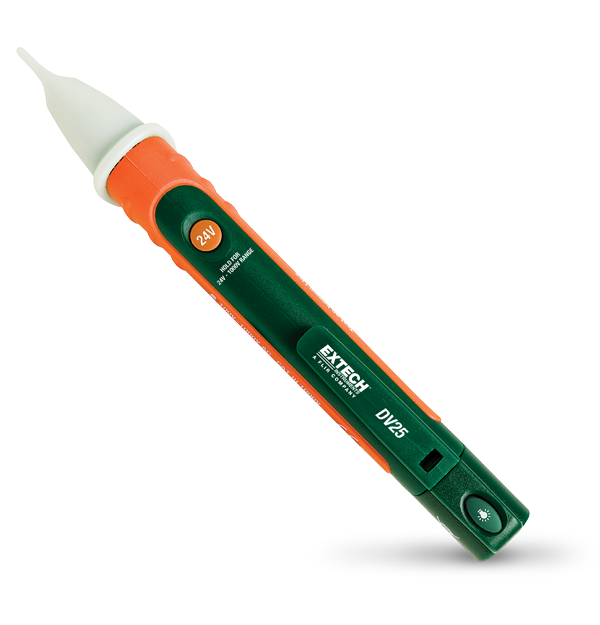

Extech DV25
带照明灯的双量程交流电压笔
Extech DV25 是一款将两种型号合而为一的双量程 NCV 试电笔。低量程的测量下限为 24 伏，高量程的测量上限为 1000 伏。包含声音和可视指示、坚固的双模塑外壳和明亮的内置 LED 照明灯。配备 2 节 AAA 电池。
便于携带，有两个可选的量程
可以以非接触的方式检测 24 至 1000 VAC 或 100 至 1000 VAC 的交流电压
具有坚固的双模塑外壳，并内置明亮的照明灯
声光电压指示
规格
| 一般参数 | |
|---|---|
| Audible_Visible Indication | 蜂鸣器，闪烁的 LED |
| Built_In Flashlight | 是 |
| Detection Distance | <0.5cm |
| Frequency Bandwidth | 50/60Hz |
| Voltage Detection [Non_Contact] | 24V 至 1000V 交流；100V 至 1000V 交流 |
| 其他详情 | |
|---|---|
| Certifications | UL |
| Dimensions | 159 × 25mm |
| Power | 2 节 AAA (1.5V) 电池 |
| Safety Category | CATIV-1000V |
| Warranty | 2 年 |
| Weight | 42g |
