Discontinued

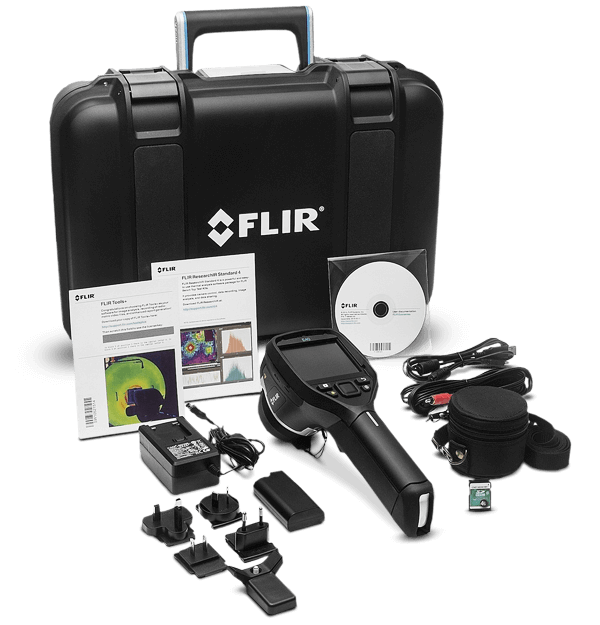

FLIR E40sc Test Kit
Benchtop Thermal Camera
The FLIR E40sc Benchtop Test Kit is the perfect choice when you need a flexible, handheld camera for engineering or science lab use. The E40sc offers longwave imaging with thousands of temperature measurement points across your target, for more reliable and comprehensive results than with a thermocouple or spot pyrometer. Together with the kit’s lens choices and analysis software, the E40sc kit is the most dependable temperature measurement solution for industrial and R&D labs.
Advanced Benchtop Thermal Testing
Non-contact measurements down to 50 µm spotsize and across 19,200 (160 x 120) pixels eliminates the guesswork of finding hot spots.
With accuracy of ±2% and a thermal sensitivity/NETD of <70 mK, the E40sc offers spot-on detection of fine thermal variations.
Stream data directly to a computer via USB, or use Wi-Fi to upload recorded images to the FLIR Tools app.
规格
| Highlighted | |
|---|---|
| 分辨率 | 160×120 |
| 灵敏度 | <0.07°C @ +30°C / 70 mK |
| 温度范围 | -20°C to 650°C 0°C to 650°C |
| 成像与光学 | |
|---|---|
| 内置数码相机 | 3.1 MPixel |
| 分辨率 | 160×120 |
| 数字数据传输到PC | via USB |
| 最小距离系数比 | 1.1mm |
| 灵敏度 | <0.07°C @ +30°C / 70 mK |
| 热像仪分析 | Center spot Hot spot Cold Spot 3 Spots Difference temperature [two versions] |
| 测量与分析 | |
|---|---|
| 时间与温度曲线图 | Yes |
| 温度范围 | -20°C to 650°C 0°C to 650°C |
| 精度 | ±2°C or ±2% of reading |
| 常规 | |
|---|---|
| 包括Research IR软件 | Yes |
附件
资源和支持
Warranty
FLIR Global Uncooled Thermal Camera 2-10 Limited Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
