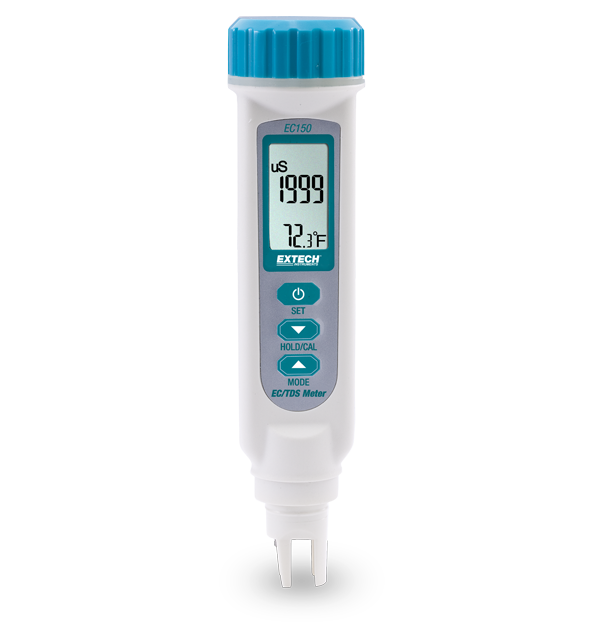

Extech EC150
Conductivity/TDS/Temperature Meter
The Extech EC150 is a Conductivity/TDS/Temperature Meter with high-accuracy multi-ranging sensor. It features auto power off with disable, adjustable conductivity to TDS ratio factor from 0.4 to 1.0, data hold and low battery indication. The waterproof design withstands wet environment and meets IP65 standard. Includes meter, protective sensor cap, and four LR44 button batteries.
规格
| 一般参数 | |
|---|---|
| TDS | 0 to 1999ppm, 0 to 19.99ppt |
| TDS 基本精度 | ±1% full scale |
| TDS 最大分辨率 | 1ppm, 0.01ppt |
| 温度（接触） | 32° to 122°F (0 to 50°C) |
| 温度（接触）基本精度 | ±0.9°F/1°C |
| 温度（接触）最大分辨率 | 0.1°F/°C |
| 电导率 | 0 to 1999µS/cm, 00 to 19.99mS/cm |
| 电导率基本精度 | ±1% full scale |
| 电导率最大分辨率 | 1µS/cm, 0.01mS/cm |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6.5 × 1.4 × 1.3" (165 × 35 × 32mm) |
| 电源 | 4 × LR44 (1.5V) button batteries |
| 认证 | CE |
| 重量 | 3.8 oz (110g) |
Resources & Support
User Manual
Extech EC150 User Manual
Datasheet
Extech EC100 EC150 Datasheet
Certification
Extech EC150 Declaration of Conformity
User Manual
Extech EC150 User Manual GB
