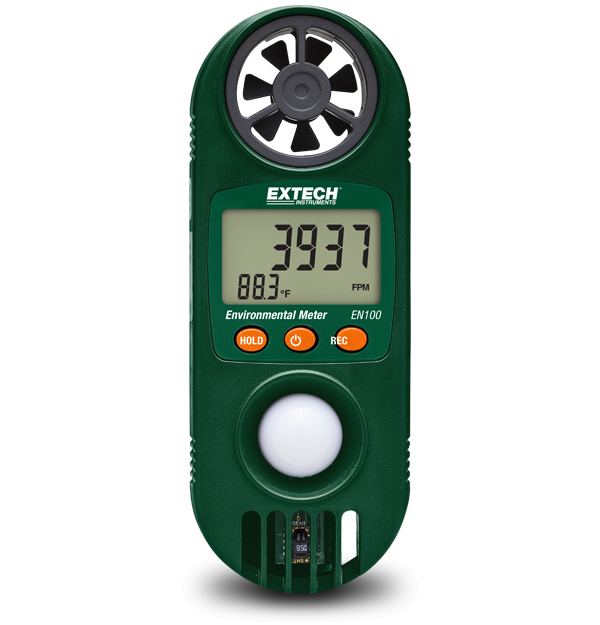

Extech EN100
11-in-1 Environmental Meter
The Extech EN100 is a compact hygro-thermo-anemometer with light sensor. The 11-in-1 Environmental Meter can be used for indoor and outdoor conditions. Built in light sensor measures light level. The auto-rotating display depending on selected function. It also measures air velocity, air flow, temperature, humidity, wet bulb, dew point, heat index, wind chill, barometric pressure and altitude. Complete with built-in multiparameter sensors, wrist strap, and a CR2032 battery.
规格
| 一般参数 | |
|---|---|
| 气量 (CFM) 最大分辨率 | 0.001CFM |
| 温度（接触） | 15 to 111°F (-9 to 44°C) |
| 温度（接触）基本精度 | ±2.5˚F/±1.2˚C |
| 温度（接触）最大分辨率 | 0.1°F/°C |
| 温度（空气） | 32 to 122°F (0 to 50°C) |
| 温度（空气）基本精度 | ±2.5˚F/±1.2˚C |
| 温度（空气）最大分辨率 | 0.1°F/°C |
| 湿球温度 | 22.3 to 120.2°F (-5.4 to 49.0°C) |
| 湿球温度最大分辨率 | 0.1°F/°C |
| 热指数 | 32 to 212°F (0 to 100°C) |
| 热指数基本精度 | ±3.6°F/±2°C |
| 热指数最大分辨率 | 0.1°F/°C |
| 照度 (Lux) | 0 to 20,000Lux |
| 照度 (Lux) 基本精度 | ±5% |
| 照度 (Lux) 最大分辨率 | 1Lux |
| 照度（英尺烛光） | 0 to 1860Fc |
| 照度（英尺烛光）基本精度 | ±5% |
| 照度（英尺烛光）最大分辨率 | 0.1Fc |
| 相对湿度 | 10 to 95% |
| 相对湿度基本精度 | ±4% |
| 相对湿度最大分辨率 | 0.1% |
| 露点最大分辨率 | 0.1°F/°C |
| 露点温度 | -13.5 to 120.2°F (-25.3 to 49.0°C) |
| 风速 (ft/min) | 80 to 3940 ft/min |
| 风速 (ft/min) 基本精度 | ±3% full scale |
| 风速 (ft/min) 最大分辨率 | 1 ft/min |
| 风速 (km/h) | 1.4 to 72km/h |
| 风速 (km/h) 基本精度 | ±3%FS |
| 风速 (km/h) 最大分辨率 | 0.1km/h |
| 风速 (m/s) | 0.4 to 20m/s |
| 风速 (m/s) 基本精度 | ±3%FS |
| 风速 (m/s) 最大分辨率 | 0.1m/s |
| 风速 (mph) | 0.9 to 45MPH |
| 风速 (mph) 基本精度 | ±3%FS |
| 风速 (mph) 最大分辨率 | 0.1MPH |
| 风速（节） | 0.8 to 38.8 knots |
| 风速（节）基本精度 | ±3%FS |
| 风速（节）最大分辨率 | 0.1knots |
| 风量 (CFM) | 0.847 to 1,271,300CFM |
| 风量 (CMM) | 0.024 to 36,000CMM |
| 风量 (CMM) 最大分辨率 | 0.001CMM |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 叶片 | 1.2" (30.5mm) |
| 尺寸 | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| 电源 | 1 × CR2032 (1.5V) battery |
| 认证 | CE |
| 重量 | 5oz (160g) |
