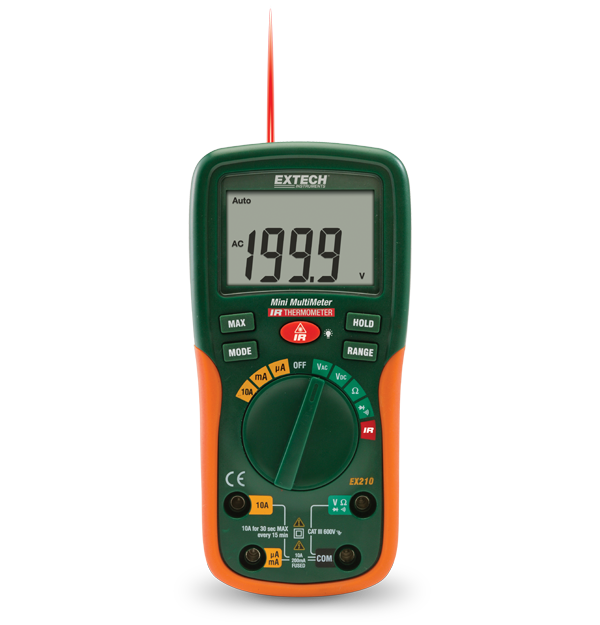

Extech EX210
8 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX210 is a Mini Digital MultiMeter with a built in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. It measures AC/DC voltage, AC/DC current, resistance, and temperature (IR). The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power off. The EX210 comes complete with test leads and a 9 V battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 600V |
| 交流电流 | 0.1 µA to 10A |
| 导通性 | Yes |
| 温度（红外）基本精度 | -5 to 446 °F (-20 to 230 °C) |
| 电阻 | 0.1Ω to 20MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电流 | 0.1 µA to 10A |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 9.17oz (260g) |
资源和支持
Datasheet
Extech EX210 Datasheet
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210 Declaration of Conformity
