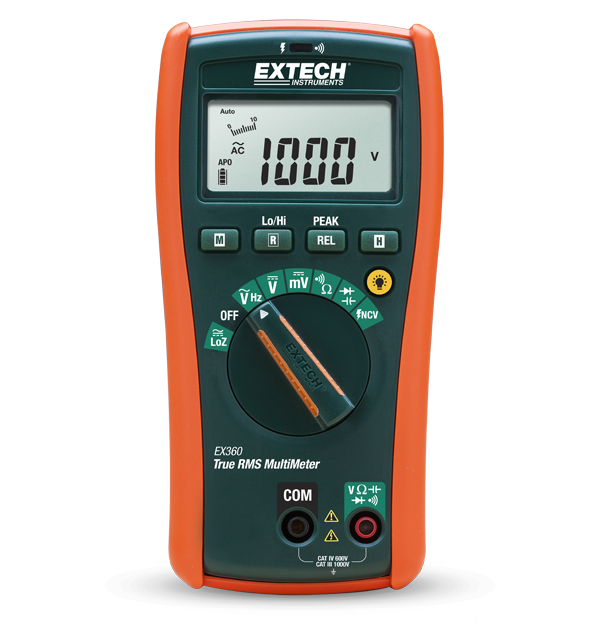

Extech EX360
8 Function True RMS Multimeter
The Extech EX360 is a compact electrical true RMS multimeter with a built in non contact voltage detector. It features highly accurate true RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5% basic accuracy, a 1000 V AC/DC volt range, resistance up to 40 MΩ, continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX360 excels in frequency and capacitance measurement. Complete with test leads, 9 V battery, holster with tilt stand and built-in magnet.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 1000V |
| 导通性 | Yes |
| 电容 | 1nF to 10mF |
| 电阻 | 0.1Ω to 40MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | 0.5% |
| 真有效值 | Yes |
| 非接触式试电笔 (NCV) | Yes |
| 频率 | 0.01Hz to 100kHz |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 安全等级 | CATIV - 600V |
| 尺寸 | 6.5 × 3.2 × 1.7" (164 × 82 × 44mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL |
| 重量 | 5.9oz (450g) |
