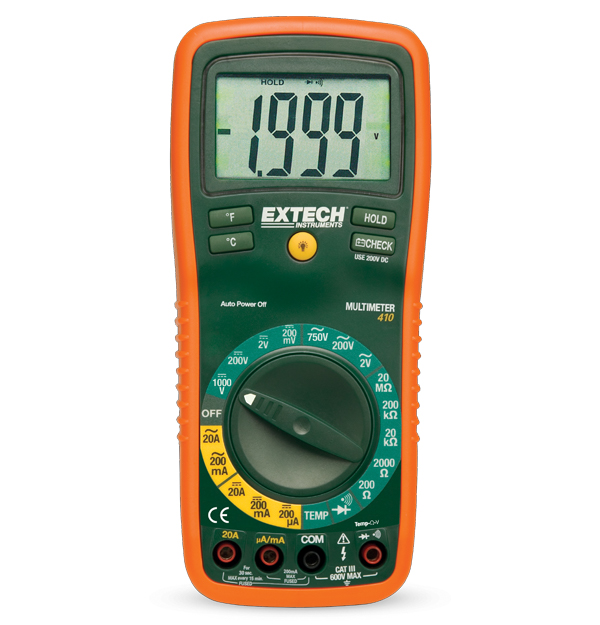

Extech EX410
8 Function Professional MultiMeter
Compact and powerful, the Extech EX410 8 Function true RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 2.5 cm (1 in) high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with the multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 1mV to 750V |
| 交流电流 | 0.1µA to 20A |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1382°F (-20 to 750°C) |
| 电阻 | 0.1Ω to 20MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±0.5% |
| 直流电流 | 0.1µA to 20A |
| 真有效值 | Yes |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V, CATIV - 1000V |
| 尺寸 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | UL |
| 重量 | 0.75lbs (342g) |
资源和支持
User Manual
Extech EX410 User Manual
Datasheet
Extech EX4xx Datasheet
