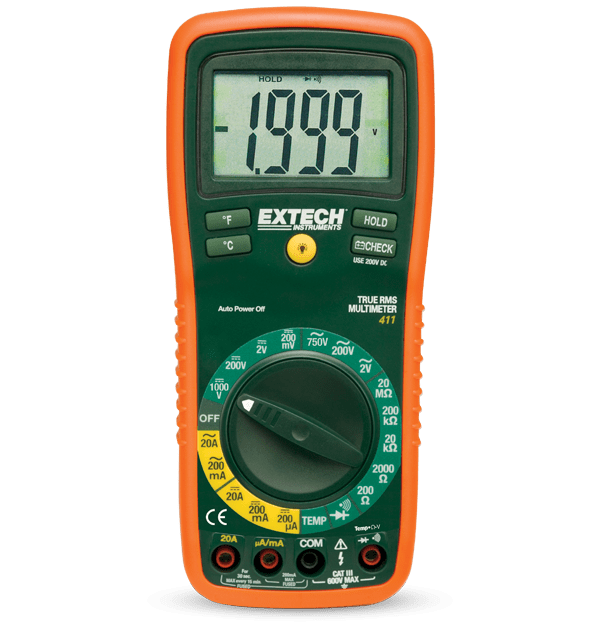

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 1mV to 750V |
| 交流电压基本精度 | ±0.5% |
| 交流电流 | 0.1mA to 20A |
| 交流电流基本精度 | ±0.5% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1382 °F (-20 to 750 °C) |
| 电阻 | 0.1Ω to 20MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±0.3% |
| 直流电流 | 0.1µA to 20A |
| 直流电流基本精度 | ±0.5% |
| 真有效值 | Yes |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V, CATIV - 1000V |
| 尺寸 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | UL |
| 重量 | 0.75lbs (342g) |
资源和支持
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
