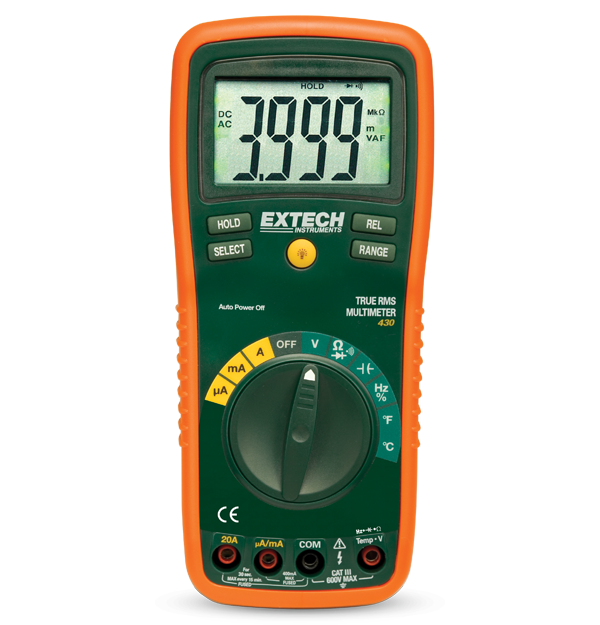

Extech EX430
11 Function True RMS Professional MultiMeter
The Extech EX430 True RMS Autoranging Multimeter is a professional grade, True RMS Multimeter capable of performing a wide range of measurements. Functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 M, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 750V |
| 交流电流 | 0.1µA to 20A |
| 占空比 | 0.1% to 99.9% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1382°F (-20 to 750°C) |
| 电容 | 0.01nF to 100µF |
| 电阻 | 0.1Ω to 40MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±0.3% |
| 直流电流 | 0.1µA to 20A |
| 真有效值 | Yes |
| 频率 | 0.001Hz to 10MHz |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 安全等级 | CATIII - 600V, CATIV - 1000V |
| 尺寸 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | UL |
| 重量 | 0.75lbs (342g) |
