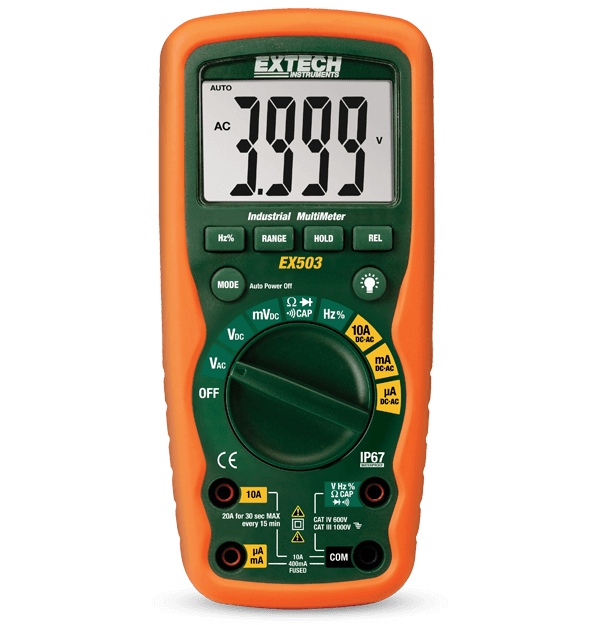

Extech EX503
10 Function Heavy Duty Industrial MultiMeter
The Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test, and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 1000V |
| 交流电流 | 0.1µA to 10A |
| 占空比 | 0.1 to 99.9% |
| 导通性 | Yes |
| 电容 | 0.01nF to 100ΩF |
| 电阻 | 0.1Ωto 40MΩ |
| 直流电压 | 0.1mV to 1000V |
| 直流电流 | 0.1µA to 10A |
| 真有效值 | Yes |
| 频率 | Electrical: 5Hz to 1kHz, Electronic: 0.001Hz to 10 MHz |
| 其他详情 | |
|---|---|
| IP防护等级 | IP67 |
| 保修 | 3 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| 显示屏 | 4000-count segment LCD |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL, NIST |
| 重量 | 12.3oz (349g) |
资源和支持
User Manual
Extech EX503 User Manual
Certification
Extech EX503 Declaration of Conformity
Datasheet
Extech EX5xx Datasheet
