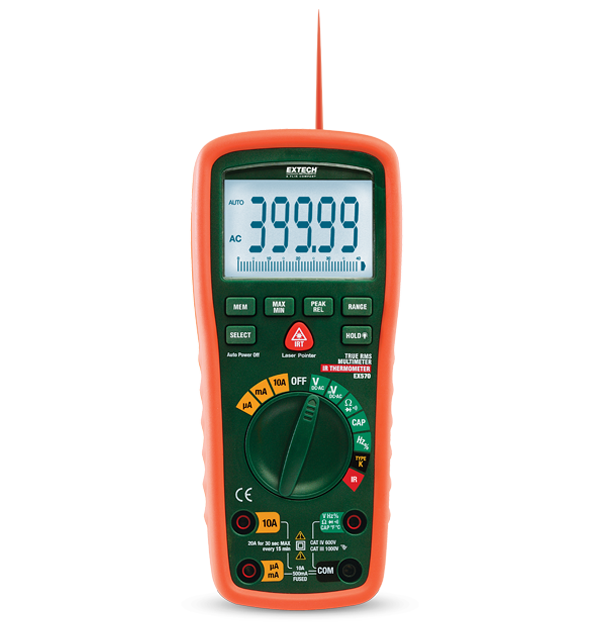

Extech EX570
12 Function True RMS Industrial MultiMeter with IR Thermometer
The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. It offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with category IV-600 V and category III-1000 V safety ratings. It measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include min/max, average, hold, relative, peak hold, and quick note memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9 V battery, and case.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | 2.8V |
| 交流电压 | 0.01mV to 1000V |
| 交流电流 | 0.01µA to 20A |
| 占空比 | 0.01 to 99.99% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -50 to 1382°F (-45 to 750°C) |
| 温度（红外）基本精度 | -22 to 1022°F (-30 to 550°C) |
| 电容 | 0.001nF to 10,000µF |
| 电阻 | 0.01Ω to 40MΩ |
| 直流电压 | 0.01mV to 1000V |
| 直流电流 | 0.01µA to 20A |
| 真有效值 | Yes |
| 距离系数比 | 30:1 |
| 频率 | 0.0001Hz to 40MHz |
| 其他详情 | |
|---|---|
| IP防护等级 | IP64 |
| 保修 | 3 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| 显示屏 | 40000-count segment LCD |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 12.3oz (349g) |
资源和支持
User Manual
Extech EX570 User Manual
Datasheet
Extech EX570 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
