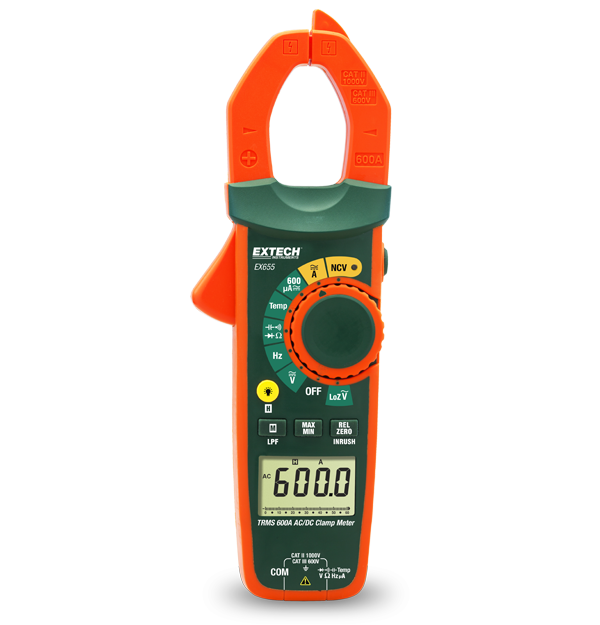

Extech EX655

600A 真有效值交流/直流钳形表 + 非接触式电压笔

Product Variations

EX655 是一款真有效值交流/直流钳形表。该钳形表还可测量交流/直流电压、电阻、电容、频率、温度，进行导通性/二极管测试，并配有 NCV 试电笔。EX655 的钳口尺寸为 1.18"，最大可容纳 350 MCM 的导体。该仪表还采用 6000 计数的背光液晶显示屏，带数据保持、最小值/最大值、相对功能、低通滤波器、浪涌模式、直流归零功能、液晶屏显示趋势条形图、自动关机和方便的 LED 工作灯。配有测试引线、常用细珠热电偶探头和 3 节 AAA 电池。

规格

一般参数
AC Current 60A、600A
AC Current Basic Accuracy ±读数的 2.5%
AC Current Max Resolution 0.01A
AC Microcurrent 600µA
AC Microcurrent Max Resolution 0.1µA
AC Voltage 750V
AC Voltage Basic Accuracy ±读数的 1.2%
AC Voltage Max Resolution 1mV
Capacitance 60mF
Capacitance Max Resolution 0.01nF
Continuity 是
DC Current 60A、600A
DC Current Basic Accuracy ±读数的 2.5%
DC Current Max Resolution 0.01A
DC Microcurrent 600µA
DC Microcurrent Max Resolution 0.1µA
DC Voltage 1000V
DC Voltage Basic Accuracy ±读数的 0.8%
DC Voltage Max Resolution 0.1mV
Diode Test 是
Frequency 10Hz 至 1MHz
Frequency Max Resolution 0.01Hz
Jaw Size 30mm，最高 350MCM 的导体
Non_Contact Voltage [NCV] Detector 100 至 1000VAC
Resistance 60MΩ
Resistance Max Resolution 0.1Ω
Temperature [Type K] Max Resolution -40 至 1000°C
Temperature [Type N] Basic Accuracy 1°C
True RMS 是
其他详情
Certifications EX655-NIST_S：CE、UL、NIST
EX655_S：CE、UL
Dimensions 228 × 77 × 41mm
Power 3 节 AAA (1.5V) 电池
Safety Category CATIII - 600V、CATII - 1000V
Warranty 3 年
Weight 265g
