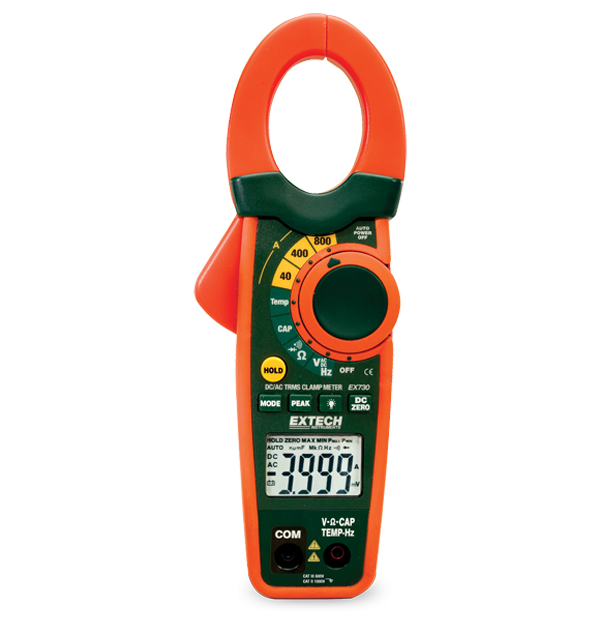

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 600V |
| 交流电压基本精度 | ±1.5% |
| 交流电流 | 0.01 to 800A |
| 交流电流基本精度 | ±2.5% |
| 导通性 | Yes |
| 浪涌电流 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 760°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 电容 | 0.001nF to 40,000µF |
| 电阻 | 0.1 to 40MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电压基本精度 | ±1.5% |
| 直流电流 | 0.1 to 800A |
| 直流电流基本精度 | ±2.5% |
| 真有效值 | Yes |
| 钳口尺寸 | 1.2" (30mm), conductors up to 500MCM |
| 频率 | 0.001 to 4kHz |
| 频率基本精度 | ±1.5% |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL |
| 重量 | 10.7 oz (303g) |
资源和支持
Datasheet
Extech EX7xx Datasheet
User Manual
Extech EX730 User Manual
