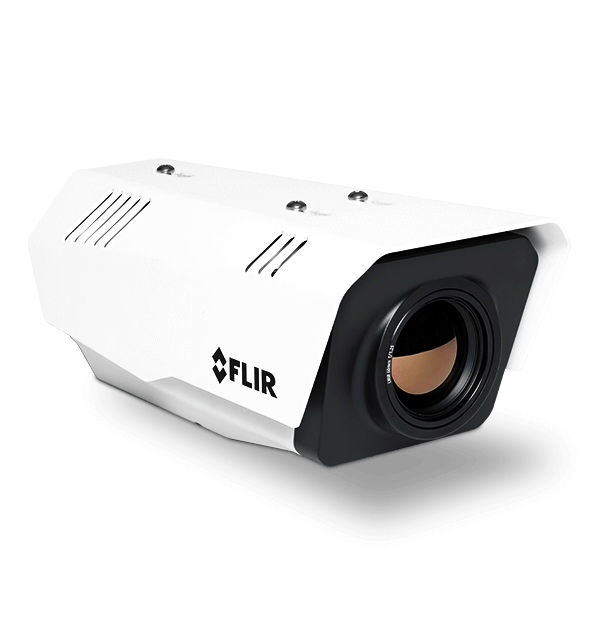

FC-Series AI
Thermal AI Analytics Camera
Product Variations
The Flir FC-Series AI is a thermal analytics security camera that offers a reliable, cost-effective way to protect perimeters from intrusion. The AI analytics combines both DNN and motion analytics that together enhances situational awareness and incident detection, enabling users to make better informed decisions that increases safety and improves coordination and efficiency. FC-Series AI's thermal sensitivity (<25 mK NETD) provides crisp image clarity positively impacting the quality and performance of analytics. In addition, the FC-Series AI provides the widest range of lens options and cyber-hardened, seamless integration with Video Management Systems including Flir UVMS and 3rd party video management systems.
Robust DNN video analytics make it possible to differentiate between true threats and nuisance alarms, even when someone is attempting to deceive the system.
Flir has the widest range of lenses to choose from, with 8 high-performance lenses ranging from 8.6° × 6.6° to 90° × 69° fields of view
Target geolocation for situational awareness and precise handoff to a PTZ device, enabling enhanced decision-making, safety, coordination, and efficiency.
规格
| 合规性与认证 | |
|---|---|
| 发射 | FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A |
| 合规性 | CE Marked ; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU |
| 安全性 | IEC 62368-1: 2018 |
| 浪涌抗扰性 | AC Power Lines and Signal Lines ESD: EN 61000-4-2 RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4 EFT: EN 61000-4-4 Surge: EN 61000-4-5 CS: EN 61000-4-6 PFMF: EN 61000-4-8 |
| 认证 | CE: EN55032 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
| 认证 | IEC 60068-2-1:2007; IEC 60068-2-2:2007; ISTA-1A (handling) |
| 环境 | |
|---|---|
| IP防护等级（防尘防水） | IP66 & IP67 |
| 存储温度范围 | -50°C to 85°C (-58°F to 185°F) |
| 工作温度范围 | -40°C to 70°C/-40°F to 158°F (cold start) |
| 抗振动 | IEC 60068-2-64:08 |
| 抗撞击 | MIL-STD-810G, Method 516.6 (Operational) IEC 60068-2-27:08 (Transportation) |
| 湿度 | 0-95% relative humidity (storage), 0-90% relative humidity (operation) |
| 防破坏 | IK10 (except lens and windows) |
| 常规 | |
|---|---|
| 保修 | Camera: 3 years / Sensor: 10 years |
| 功耗 | Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC(VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W |
| 尺寸（长 x 宽 x 高） | Without sunshield: 259 × 114 × 106 mm/10.2 × 4.5 × 4.2 in With sunshield: 282 × 129 × 115 mm/11.1 × 5.1 × 4.5 in |
| 探测器类型 | Long-life, uncooled VOx microbolometer |
| 有效分辨率 | 327,680 pixels |
| 电子变焦 | 4x continuous E-Zoom |
| 调焦范围 | Athermalized, focus-free |
| 重量 | With sunshield: 7.5/9/13/19/25/35 mm 2.2 kg (4.75 lb) - 60 mm 2.4 kg (5.25 lb) - 75 mm 2.5 kg (5.5 lb) Without sunshield: 7.5/9/13/19/25/35 mm 1.8 kg (4 lb) - 60 mm 2.0 kg (4.5 lb) - 75 mm 2.2 kg (4.75 lb) |
| 测量与分析 | |
|---|---|
| 分析技术特性 | Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, CNN classifier |
| 分析技术管理 | Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| 系统集成 | |
|---|---|
| 以太网 | 10/100 Mbps |
| 以太网视频 | Two independent channels of H.264 / H.265 or MJPEG |
| 兼容外部分析软件 | Yes |
| 控制输入/输出 | 1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC) |
| 支持的协议 | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1x |
| 模拟复合视频输出 | 1Vp-p (PAL or NTSC), 1 x BNC 75 Ω |
| 网络API | NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T |
| 视频流分辨率 | 640 × 512 |
| 热像仪 | |
|---|---|
| 像素间距 | 17 µm |
| 光圈数（热成像） | FC-608 AI, FC-617 AI, FC-625 AI: f/1.1 FC-610 AI, FC-690 AI: f/1.2 FC-632 AI, FC-644 AI: f/1.0 FC-669 AI: f/1.4 |
| 图像一致性优化 | Automatic flat field correction (FFC); thermal and temporal triggers |
| 热图像设置 | Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization |
| 热帧频 | NTSC: 30 Hz - PAL: 30 Hz / 8.3 Hz |
| 热成像AGC侦测区域[ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| 热成像AGC模式 | Brightness, Contrast, Sharpness, Grey Shade Compression, Gamma, Smart Screen Balance |
| 热灵敏度 - NETD（热成像） | <25 mK @ 25°C (77°F) for f/1.0 |
| 热灵敏度/NETD | <25 mK @ 25°C (77°F) for f/1.0 |
| 焦距-热成像 | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 7.5 mm FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 35 mm FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 60 mm FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 75 mm FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 19 mm |
| 视场角 (FOV)（热成像） | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 90° × 69° FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 69° × 56° FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 44° × 36° FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25° × 18° FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 17° × 14° FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 10° × 8.2° FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 8.6° × 6.6° FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 32° × 26° |
| 镜头 | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 7.5 mm FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 35 mm FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 60 mm FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 75 mm FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 19 mm |
| 阵列格式（热成像） | 640 × 512 |
| 频谱范围（热成像） | 7.5 µm to 13.5 µm |
| 视频和录制 | |
|---|---|
| NTSC或PAL复合视频 | Hybrid system with IP & analog video, dynamic NTSC or PAL settings |
| 本地存储 | Support for up to 512 GB SD Card (not supplied) |
| 视频压缩 | Two independent channels of H.264 / H.265 or MJPEG |
