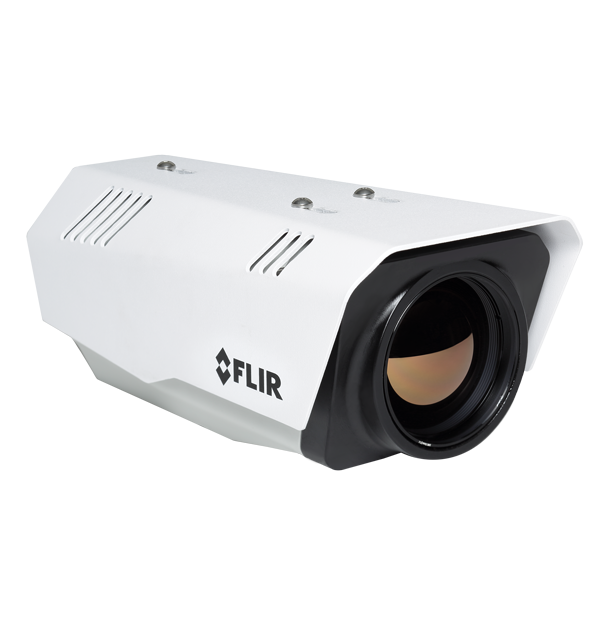

FC-Series AI-R
Thermal Radiometric Camera
Product Variations
The Flir FC-Series AI-R is a ruggedized thermal radiometric camera that integrates industry-leading thermal imaging to detect hot spots and combustion risks in harsh outdoor environments and remote areas. When the object surface temperature reaches pre-set upper thresholds, the FC-Series AI-R continuously monitors for temperature changes or hot spots in areas prone to fire risks, such as storage containers, warehouses, combustible piles, landfills, and waste bunkers. Upon detecting a hot spot or significant temperature change, the camera promptly sends an alarm to the Video Management System (VMS) for immediate assessment and swift deployment of response tactics. Integrating Deep Neural Network and motion analytics, with a thermal sensitivity of <35 mK NETD, the FC-Series AI-R offers enhanced situational awareness and clear image quality. This camera also offers a range of lens options and boasts cyber-hardened integration with both Flir UVMS and third-party VMS, making it a versatile tool for perimeter security and physical asset safety.
• Process temperature differences in real-time to identify risks of overheating
• Monitor relative temperature changes to detect failing components
• Measure surface temperatures with an accuracy of ±5°C (41°F) for targets below 150°C (302°F)
• Monitor relative temperature changes to detect failing components
• Measure surface temperatures with an accuracy of ±5°C (41°F) for targets below 150°C (302°F)
• Four high-performance thermal lenses ranging from an 17° × 14° to a 69° × 56° field of view (FOV)
• Crisp images from premium thermal sensor for rapid visual verification of hot spots using isotherm specific color palettes to differentiate pixels from coldest to warmest detected object surface temperatures
• Video with 640 × 512 full resolution allows to view images, thermal patterns, and contrast despite smoke, low light, light fog, and haze
• Flir's custom AGCs provide images with extremely high contrast
• Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance
• Crisp images from premium thermal sensor for rapid visual verification of hot spots using isotherm specific color palettes to differentiate pixels from coldest to warmest detected object surface temperatures
• Video with 640 × 512 full resolution allows to view images, thermal patterns, and contrast despite smoke, low light, light fog, and haze
• Flir's custom AGCs provide images with extremely high contrast
• Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance
• Set temperature thresholds to be notified in real-time when an object’s surface temperature breaches the upper values
• Reduce false radiometric alarms by combining thermal hot-spot detection with intelligent vehicle detection, to filter out alarms from hot vehicle exhaust pipes in monitored areas
• Seamlessly integrate with Flir UVMS, as well as with other major third-party video management systems, through the Flir Nexus® software development kit
• Nexus on-board enables target geolocation for situational awareness, and precise hand-off to a pan-tilt-zoom device
• Reduce false radiometric alarms by combining thermal hot-spot detection with intelligent vehicle detection, to filter out alarms from hot vehicle exhaust pipes in monitored areas
• Seamlessly integrate with Flir UVMS, as well as with other major third-party video management systems, through the Flir Nexus® software development kit
• Nexus on-board enables target geolocation for situational awareness, and precise hand-off to a pan-tilt-zoom device
规格
| 合规性与认证 | |
|---|---|
| 发射 | FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A |
| 合规性 | CE Marked; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU |
| 安全性 | IEC 62368-1: 2018 |
| 网络安全 | |
|---|---|
| 安全性 | IEEE 802.1X, TLS/HTTPS, User authentication access control via firewall, user credentials with policy enforcement, digest authentication, IP address filtering |
| 环境 | |
|---|---|
| IP防护等级 | IP67 |
| 存储温度范围 | -50°C to 85°C (-58°F to 185°F) |
| 工作温度范围 | -40°C to 70°C (-40°F to 158°F) cold start |
| 抗振动 | IEC 60068-2-64:08 |
| 抗撞击 | Shock (Operational) MIL-STD-810G, Method 516.6 Shock (Transportation) IEC 60068-2-27:08 |
| 湿度 | 0-90% relative humidity |
| 防破坏 | IK10 (except lens and windows) |
| 除冰/抗冰 | MIL-STD 810F:00 + Notice 1:00 + Notice 2:02 + Notice 3:03 |
| 常规 | |
|---|---|
| 保修 | Camera: 3 years / Sensor: 10 years |
| 在交流电源线上的浪涌抗扰性 | ESD: EN 61000-4-2 RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4 EFT: EN 61000-4-4 Surge: EN 61000-4-5 CS: EN 61000-4-6 PFMF: EN 61000-4-8 |
| 尺寸（长 x 宽 x 高） | With sunshield: 282 mm × 129 mm × 115 mm (11.1 in × 5.1 in × 4.5 in) Without sunshield: 259 mm × 114 mm × 106 mm (10.2 in × 4.5 in × 4.2 in) |
| 探测器类型 | Long-life, uncooled VOx microbolometer |
| 有效分辨率 | 327,680 pixels |
| 输入电压 | Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC (VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W |
| 重量 | Weight with sunshield 2.2 kg (4.75 lb) Weight without sunshield 1.8 kg (4 lb) |
| 测量与分析 | |
|---|---|
| 分析技术特性 | Region entrance/Intrusion detection, Crossover/fence trespassing, DNN classifier |
| 分析技术管理 | Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| 测温精度 | Target below 100ºC (212ºF) ±5ºC (±9ºF) accuracy Target below 150ºC (302ºF) ±5% accuracy Target above 150ºC (302ºF) ±15% accuracy Measured at 25ºC (77ºF) ambient temperature. Error may be greater at extreme temperatures. |
| 测温范围 | High Gain Mode: 0ºC to 160ºC (32ºF to 320ºF) Low Gain Mode: 0ºC to 380ºC (32ºF to 716ºF) Video analytics only functional in High Gain Mode |
| 系统集成 | |
|---|---|
| 以太网 | 10/100 Mbps |
| 兼容外部分析软件 | Yes |
| 存储介质 | Up to 512 GB microSD / microSDHC / microSDXC card (sold separately) |
| 控制输入/输出 | 1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC) |
| 支持的协议 | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SNMP, IEEE 802.1X |
| 模拟复合视频输出 | 1Vp-p (PAL or NTSC), 1 × BNC 75 Ω |
| 网络API | NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T |
| 视频流分辨率 | 640 × 512 |
| 热像仪 | |
|---|---|
| 像素间距 | 17 µm |
| 光圈数（热成像） | FC-617 AI-R, FC-625 AI-R: f/1.1 FC-644 AI-R: f/1.0 FC-669 AI-R: f/1.4 |
| 图像一致性优化 | Automatic flat field correction (FFC); thermal and temporal triggers |
| 热图像设置 | Brightness, Contrast, Sharpness, Auto AGC, Gamma, Smart Screen Optimization |
| 热帧频 | 30 Hz / 8.3 Hz |
| 热灵敏度 - NETD（热成像） | ≤35 mK @ 25°C (77°F) for f/1.0 |
| 焦距-热成像 | FLIR FC-669 AI-R, 69° × 56° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI-R, 44° × 36° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI-R, 25° × 18° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI-R, 17° × 14° (35 mm) f/1.1 lens: 35 mm |
| 视场角 (FOV)（热成像） | FLIR FC-669 AI-R, 69° × 56° (9 mm) f/1.4 lens: 69° × 56° FLIR FC-644 AI-R, 44° × 36° (13 mm) f/1.0 lens: 44° × 36° FLIR FC-625 AI-R, 25° × 18° (25 mm) f/1.1 lens: 25° × 18° FLIR FC-617 AI-R, 17° × 14° (35 mm) f/1.1 lens: 17° × 14° |
| 调焦-热成像 | Athermalized, focus-free |
| 阵列格式（热成像） | 640 × 512 |
| 频谱范围（热成像） | 7.5 µm to 13.5 µm |
| 视频和录制 | |
|---|---|
| 热成像视频AGC侦测区域[ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| 视频压缩 | Two independent channels of H.264 / H.265 or MJPEG |
| 视频标准 | IP & analog video |
