Discontinued

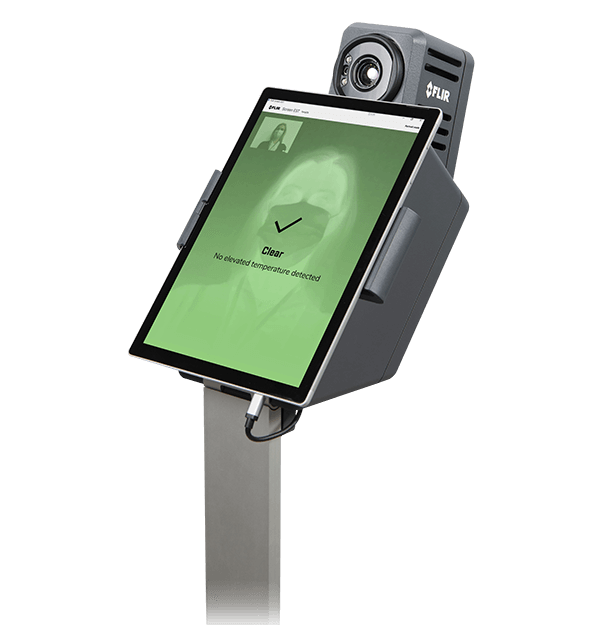

FLIR EST Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
规格
| Highlighted | |
|---|---|
| 数字输入/输出连接器类型 | M12 12-pin A-coded, Male (shared with external power) |
| 数字输出用途 | As function of alarm, output to external device, for example when the screening alarm is triggered |
| 数字输出 | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| 编码 | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| 以太网接口 | Wired, Wi-Fi |
| WiFi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| 光圈数 | 1.3 |
| 图像频率 | |
| 图像频率 | 30 Hz |
| 分辨率 | |
| 热灵敏度/NETD | <40 mK at 30°C (86°F) |
| 精度 | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| 通讯与数据存储 | |
|---|---|
| WiFi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| 以太网 | Control, result, image, and power |
| 以太网接口 | Wired, Wi-Fi |
| 以太网标准 | IEEE 802.3 |
| 以太网类型 | 1000 Mbps |
| 以太网连接器类型 | M12 8-pin X-coded, Female; RP-SMA, Female |
| 以太网通信 | TCP/IP socket-based FLIR proprietary |
| 数字输入/输出绝缘电压 | 500 VRMS |
| 数字输入/输出连接器类型 | M12 12-pin A-coded, Male (shared with external power) |
| 数字输出 | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| 数字输出用途 | As function of alarm, output to external device, for example when the screening alarm is triggered |
| 编码 | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| 成像与光学 | |
|---|---|
| 像素格式 | Video stream – YUV411; Radiometric stream – MONO 16 |
| 光圈数 | 1.3 |
| 叠加 | Video stream 0 – With/Without; Video stream 1 – No |
| 图像源 | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| 图像频率 | 30 Hz |
| 图像频率 | |
| 对比增强 | FSX® / Histogram equalization (IR only) |
| 探测器像素间距 | 17 µm |
| 最小焦距 | 0.15 m (0.49 ft) |
| 波长范围 | 7.5–14 µm |
| 热灵敏度/NETD | <40 mK at 30°C (86°F) |
| 焦平面阵列（FPA） | Uncooled microbolometer |
| 焦距 | 17 mm (0.67 in) |
| 空间分辨率（IFOV） | 0.90 mrad/pixel |
| 红外分辨率 | 464 × 348 |
| 视场角（FOV） | 24° × 18° |
| 视频流 | Bit rate set through camera web |
| 视频流分辨率 | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| 调焦 | One-shot contrast, motorized, manual |
| 镜头识别 | Automatic |
| 测量与分析 | |
|---|---|
| 测温范围 | 15°C to 45°C (59°F to 113°F) |
| 精度 | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| 常规 | |
|---|---|
| 包装包括 | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| 尺寸（长×宽×高） | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| 重量 | 8.3 kg (18 lb.) |
| 环境与认证 | |
|---|---|
| 保修 | http://www.flir.com/warranty/ |
| 电源 | |
|---|---|
| 功耗 | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| 外接电源管理 | 24/48 V DC 8 W max |
| 外部电压 | Allowed range 18–56 V DC |
| 电源连接 | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| 用户界面 | |
|---|---|
| 网络接口 | Yes |
