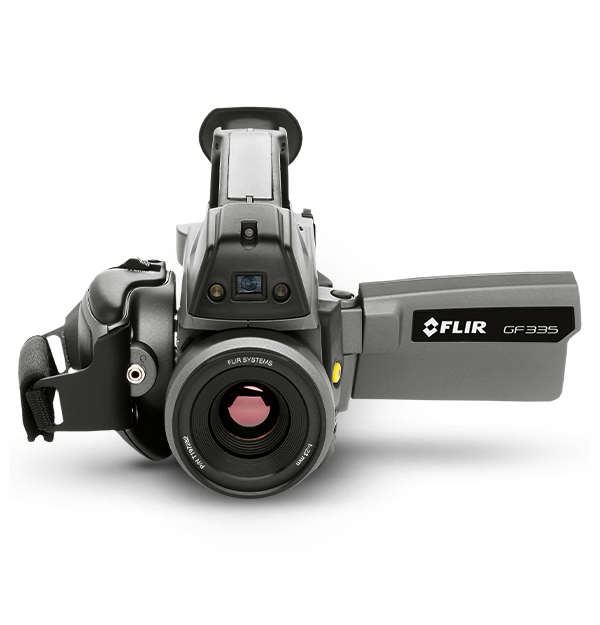

FLIR GF335
Cooled MWIR High-Sensitivity Camera
If you need a mobile camera that can detect extremely subtle temperature differences, the FLIR GF335 Broadband is the camera for you. The GF335 is a high sensitivity, low noise, cooled thermal camera that excels at detecting faint heat signatures. It is well suited to a wide range of applications, including use on test ranges, non-destructive testing, research, and science applications.
规格
| Highlighted | |
|---|---|
| 探测器分辨率 | |
| 分辨率 | 320 x 240 |
| 探测器像素间距 | 30 µm |
| 波长范围 | 3-5 µm |
| 探测器类型 | Indium Antimonide (InSB) |
| 热像仪光圈数 | f/1.5 |
| 动态范围 | 14-bit |
| 热灵敏度（NETD） | <15 mK |
| 帧频[全窗口] | 60Hz |
| 标准测温范围 | -20°C to 120°C (-4°F to 248°F) |
| 成像与光学 | |
|---|---|
| 分辨率 | 320 x 240 |
| 动态范围 | 14-bit |
| 可选镜头 | NA |
| 帧频[全窗口] | 60Hz |
| 探测器像素间距 | 30 µm |
| 探测器分辨率 | |
| 探测器类型 | Indium Antimonide (InSB) |
| 数字数据流 | Real-time Radiometric = USB to PC (30 Hz) Real-time Radiometric = Memory Card on Camera (15 Hz) Real-time Non-radiometric = USB to PC Real-time Non-radiometric = Memory Card on Camera |
| 波长范围 | 3-5 µm |
| 热像仪光圈数 | f/1.5 |
| 热灵敏度（NETD） | <15 mK |
| 近焦镜头/显微镜 | NA |
| 测量与分析 | |
|---|---|
| 标准测温范围 | -20°C to 120°C (-4°F to 248°F) |
| 精度 | ±1°C or ±1% of reading |
| 常规 | |
|---|---|
| 包装尺寸 | 8.35 kg (18.4 lb.) |
