FLIR GF77a
气体泄漏可视化连续监测解决方案
Product Variations

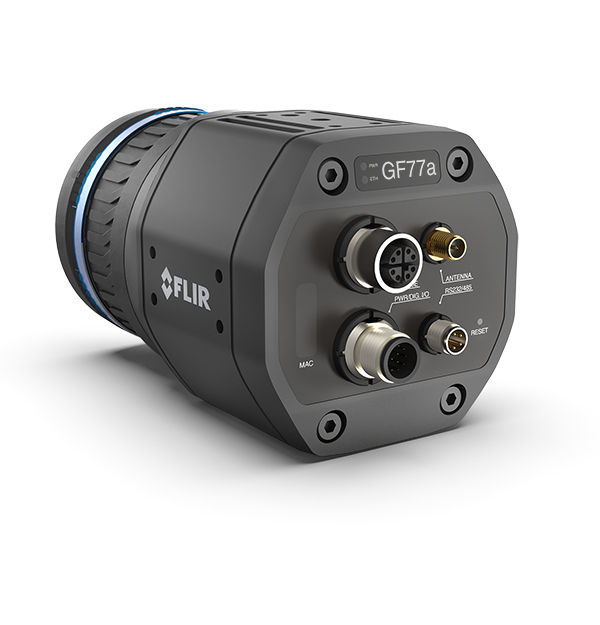

FLIR GF77a是FLIR推出的首款非制冷型自动泄漏检测热像仪，专门针对甲烷气体可视化而设计。这款经济实惠的固定式热像仪解决方案为上游和中游气体处理者、生产者或经营者提供持续监控潜在危险、难以察觉的甲烷泄漏所需的功能。FLIR GF77a外形小巧且重量轻盈，搭载FLIR技术，如高灵敏度模式（HSM），以增强气体可视化效果。GF77a有助于油气公司维护贵重资本设备，避免产品损伤，符合减排标准，确保操作规程更安全。
连续监测天然气泄漏
为持续监控应用提供高灵敏度模式、远距离电动调焦和便于第三方集成的开放式架构等功能
通过光谱筛选的方式检测甲烷气体，提高工人安全性，更少的到场检查即可识别泄漏位置
GF77a兼容RTSP、GigE和ONVIF协议，连接灵活，可满足众多工业通信需求，连接至网络可实现连续泄漏监测
规格
| Highlighted | |
|---|---|
| 红外分辨率 | 320 × 240 (76,800) pixels |
| 热灵敏度/NETD | < 25 mK at 30°C (86°F) |
| 波长范围 | 7 – 8.5 µm |
| 成像与光学 | |
|---|---|
| 像素格式 | YUV411 |
| 分辨率 | REST API: 640 × 480 pixels, 1280 × 960 pixels Web UI: 640 × 480 pixels |
| 叠加 | Image Source 0: RTSP Protocol: with, without; GVSP (GigE Vision) Protocol, with, without, |
| 可见光分辨率 | 1280 × 960 pixels |
| 图像流分辨率 | See Video/Radiometric streaming RTSP and GVSP tables. |
| 图像流格式 | See Video/Radiometric streaming RTSP and GVSP tables. |
| 图像源 | Visual / IR / MSX |
| 图像频率 | 30 Hz |
| 对比增强 | Histogram equalization (IR only) for RTSP and GVSP video streaming, Image Source 0 |
| 探测器像素间距 | 25 µm |
| 探测器类型 | Uncooled microbolometer |
| 最小焦距 | 0.3 m (0.98 ft) for 25° lens; 5 m (16.4 ft) for 6° lens |
| 气体灵敏度 [NECL] | CH4 (<100 ppm × m), N2O (<75 ppm × m), C3H8 (<400 ppm × m), SO2 (<30 ppm x m); ΔT = 10°C, distance = 1 m |
| 波长范围 | 7 – 8.5 µm |
| 热分辨率 [NETD] | <25 mk at 30°C (86°F) |
| 热灵敏度/NETD | < 25 mK at 30°C (86°F) |
| 焦平面阵列(FPA)-波长范围 | Uncooled microbolometer/7 – 8.5 µm |
| 焦距 | FLIR GF77a 25° CH4 (7–8.5 µm): 25° lens: 18 mm
6° lens: 74 mm
FLIR GF77f 25°: 18 mm (0.71 in) |
| 空间分辨率（IFOV） | 1.4 mrad/pixel |
| 红外分辨率 | 320 × 240 (76,800) pixels |
| 红外分辨率 | 320 × 240 pixels |
| 视场角（FOV） | FLIR GF77a 25° CH4 (7–8.5 µm): 25° lens: 25° × 19°
6° lens: 6.4° × 4.9°
FLIR GF77f 25°: 640 × 480 pixels; according to IR FOV 1280 × 960 pixels; 67.2° (diagonal) |

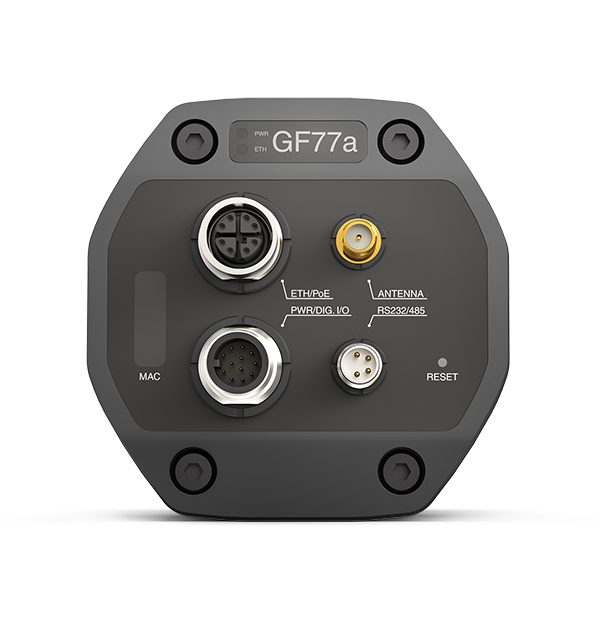

| 视觉焦点和视场角 | Fixed, 67.2° diagonal |
| 视频流分辨率 | 640 × 480 pixels |
| 视频灯 | Built-in LED light |
| 调焦 | FLIR GF77a 25° CH4 (7–8.5 µm): One-shot contrast, motorized, manual FLIR GF77f 25°: Fixed |
| 镜头识别 | Automatic |
| 测量与分析 | |
|---|---|
| 光学器件传输校正 | Automatic, based on signals from internal sensors |
| 反射表观温度校正 | FLIR GF77a 25° CH4 (7–8.5 µm): C FLIR GF77f 25°: Based on input of reflected temperature |
| 发射率校正 | FLIR GF77a 25° CH4 (7–8.5 µm): C FLIR GF77f 25°: Variable from 0.01 to 1.0 |
| 外部光学镜头与视窗校正 | FLIR GF77a 25° CH4 (7–8.5 µm): C FLIR GF77f 25°: Based on input of optics/window transmission and temperature |
| 大气传递校正 | FLIR GF77a 25° CH4 (7–8.5 µm): C FLIR GF77f 25°: Based on inputs of distance, atmospheric temperature, and relative humidity |
| 校正选项 | Atmospheric, optics transmission, emissivity, reflected apparent temperature, external optics/window |
| 测温范围 | Range 1: -20° to 80°C (-4° to 176°F), Range 2: 0° to 250°C (212° to 482°F), Range 3: 100° to 500°C (212° to 932°F) |
| 测量校正 | Global object parameters |
| 精度 | Range 1: -20° to 80°C (-4° to 176°F) ±3°C (±5°F), Range 2: 0° to 250°C (212° to 482°F): 0° to 100°C (32° to 212°F):±3°C, 100° to 250°C (212° to 482°F):±3%, Range 3: 100° to 500°C (212° to 932°F):±3% |
| 通讯与数据存储 | |
|---|---|
| WiFi | Wi-Fi standard – IEEE802.11a/b/g/n |
| 串行通信 | Pan and tilt control: RS232 and RS485 exclusively |
| 以太网协议 | IEEE 1588, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client) SMTP, DHCP, MDNS (Bonjour), uPnP |
| 以太网图像流 | Yes |
| 以太网接口 | Wired |
| 以太网标准 | IEEE 802.3 |
| 以太网电源 | Power over Ethernet, PoE IEEE 802.3af class 3 |
| 以太网类型 | 10/100Base-T |
| 以太网连接器类型 | FLIR GF77a 25° CH4 (7–8.5 µm): M12 8-pin X-coded, Female FLIR GF77f 25°: RJ45, Female |
| 以太网通信 | GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based FLIR proprietary |
| 单播 | RTSP Protocol, GVSP (GigE Vision) Protocol |
| 数字输入 | 2x opto-isolated, Vin (low) = 0 - 1.5 V, Vin (high) = 3-25V |
| 数字输入/输出绝缘电压 | 500 VRMS |
| 数字输入/输出连接器类型 | M12 Male 12-pin A-coded (shared with ext. power) |
| 数字输入用途 | NUC NUC disable Image tag (Start, Stop, General) Image flow control (acc. SFNC 2.3) Single frame (on trigg) Multi-frame (on trigg) Continuous Frame rate ROI |
| 数字输出 | 3x opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60. Solid-state opto relay, 1x dedicated as Fault output (NC) |
| 数字输出用途 | • Programmatically set • Fault (NC) |
| 组播 | RTSP Protocol, GVSP (GigE Vision) Protocol |
| 编码 | Video streaming – RTSP Protocol: H.264 / MPEG4 / MJPEG; GVSP: Uncompressed Radiometric streaming – RTSP Protocol: Compressed JPEG-LS, FLIR radiometric; GVSP: Uncompressed, signal linear, temperature linear, FLIR radiometric |
| 连接器 | Pan and tilt control: M8 A-coded, male; Wi-Fi: Female RP-SMA (Pan/Tilt is an optional feature) |
| 连接类型 | Wi-Fi: Peer to peer (ad hoc) or infrastructure (network) |
| 常规 | |
|---|---|
| 包装包括 | Thermal camera in protective housing Extra cable glands for auxiliary cables Printed documentation including the username and password for log in to the web interface of the camera |
| 包装尺寸 | 645 × 207 × 225 mm (25.4 × 8.15 × 8.86 in) |
| 包装类型 | Cardboard box |
| 包装重量 | 6.8 kg (15.0 lb) |
| 外壳材料 | Aluminum |
| 尺寸[长×宽×高] | FLIR GF77a 25° CH4 (7–8.5 µm): 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in) FLIR GF77f 25°: 510 × 177 × 229 mm (20.1 × 6.97 × 9.02 in) |
| 方位/俯仰云台 | Optional feature; Control standard – Pelco D |
| 重量 | FLIR GF77a 25° CH4 (7–8.5 µm): 0.82 kg (1.8 lbs) FLIR GF77f 25°: 5.90 kg (13.0 lb) |
| 用户界面 | |
|---|---|
| 网络接口 | Yes |
| 电源 | |
|---|---|
| 功耗 | 6.8 W at 24 V DC typical 7.0 W at 48 V DC typical 7.3 W at 48 V PoE typical |
| 外接电源管理 | Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus |
| 外部电压 | FLIR GF77a 25° CH4 (7–8.5 µm): Allowed range 18-56 VDC, 8 W max FLIR GF77f 25°: PoE Class 4 (25W) |
| 常规 | PoE or external |
| 环境与认证 | |
|---|---|
| 保修 | http://www.flir.com/warranty/ |
| 存储温度范围 | IEC 68-2-1 and IEC 68-2-2, –40 to 70°C (–40 to 158°F) for 16 hours |
| 封装 | FLIR GF77a 25° CH4 (7–8.5 µm): IP 54 (IEC 60529) IP66 with accessory FLIR GF77f 25°: IP67 |
| 工作温度 | –30 to 50°C (–22 to 122°F) |
| 湿度（工作及存放） | Relative humidity: from 5% up to 95% |
| 电磁兼容性（EMC） | EN 55032:2015 Emission Requirements EN 55035:2017 Immunity Requirements FCC – Title 47 CFR Part 15:2019 ICES-001 Issue 4:2014 |
| 耐腐蚀性 | Salty fog resistance: ISO9227, to 1000 hours |
| 镜头传输校正 | C |
