Extech HD400
Heavy Duty Light Meter

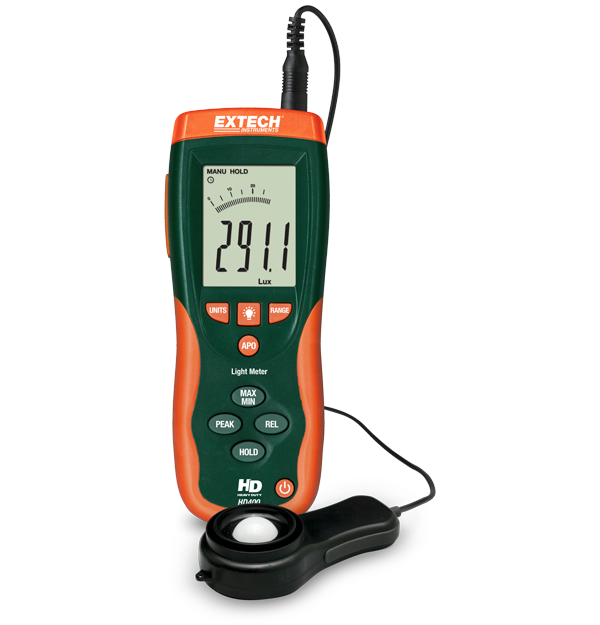

The HD400 Heavy Duty Light Meter measures up to 400 kLux (40,000 Fc) with 0.1 Lux (0.01 Fc) resolution. It features a 5% accuracy, peak mode (10 µs), relative mode, min/max, and data hold functions. The HD400 has a backlit LCD display with a 40 segment bar graph and a rugged double molded housing. Comes complete with light sensor with 1 m (3ft) cable and protective cover, software with USB cable, hard carrying case, and 9 V battery.
规格
| 一般参数 | |
|---|---|
| PC接口 | USB with software included |
| 余弦和色彩校正 | Yes |
| 照度 (Lux) | 400, 4000, 40k, 400kLux |
| 照度 (Lux) 基本精度 | ±5% |
| 照度 (Lux) 最大分辨率 | 0.1Lux |
| 照度（英尺烛光） | 40, 400, 4000, 40kFc |
| 照度（英尺烛光）基本精度 | ±5% |
| 照度（英尺烛光）最大分辨率 | 0.01Fc |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 6.7 × 3.1 × 1.6" (170 × 80 × 40mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 13.7oz (390g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD400 Software
User Manual
Extech HD400 User Manual
Certification
Extech HD400 Declaration of Conformity
Datasheet
Extech HD400-HD450 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
