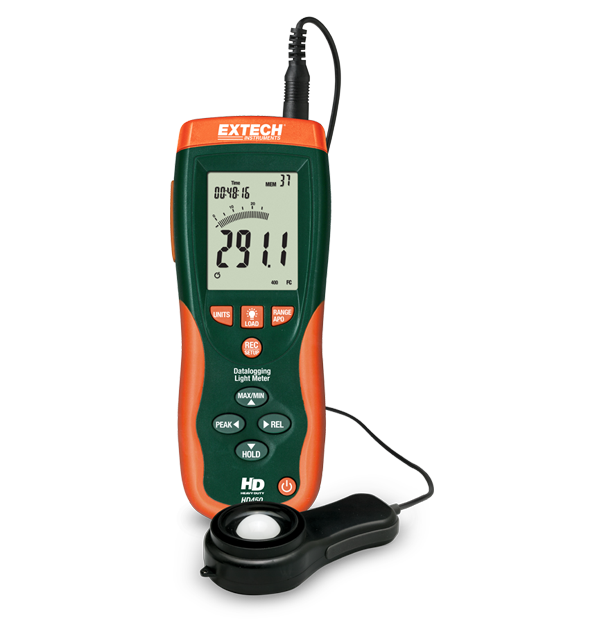

Extech HD450
数据记录式耐用型照度计
HD450 照度计的测量范围为 0 至 40,000Fc 和 0 至 400kLux，分辨率为 0.01Fc/0.1Lux。特点：5% 精度、峰值模式 (10µs)、相对模式、最小值/最大值、数据保持、带 40 段条形图的背光 LCD 显示屏，以及坚固的双模塑外壳。此外，该产品可自动保存多达 16,000 个读数，或者手动保存/调用多达 99 个读数。配有带 1m 电缆和保护盖的光传感器、带软件的 USB 线、硬质便携箱和 9V 电池。
Specifications
| 一般参数 | |
|---|---|
| Cosine and Color Corrected | 是 |
| Light [Foot Candle] | 40、400、4000、40kFc |
| Light [Foot Candle] Basic Accuracy | ±5% |
| Light [Foot Candle] Max Resolution | 0.01F |
| Light [Lux] | 400、4000、40k、400k Lux |
| Light [Lux] Basic Accuracy | ±5% |
| Light [Lux] Max Resolution | 0.1Lux |
| Memory | 16,000 个数据点（连续）/99 个数据点（手动） |
| PC Interface | 已含带软件的 USB |
| 其他详情 | |
|---|---|
| Certifications | HD450-NIST_S：CE、NIST HD450_S：CE |
| Dimensions | 170 × 80 × 40mm |
| Power | 1 节 9V 电池 |
| Warranty | 3 年 |
| Weight | 390g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD450 Software
User Manual
Extech HD450 User Manual
Certification
Extech HD450 Declaration of Conformity
Datasheet
Extech HD400-HD450 Datasheet
Datasheet
Extech HD450 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
