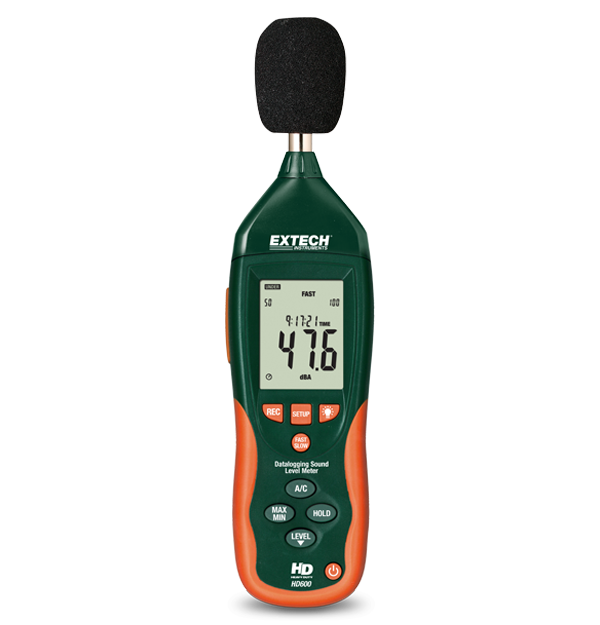

Extech HD600
Datalogging Sound Level Meter
The Extech HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 dB to 130 dB with ± 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. The unit features a rugged double molded housing and a built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9 V battery, and user manual.
规格
| 一般参数 | |
|---|---|
| PC接口 | USB |
| 内存 | 20,000 records |
| 加权 | A,C |
| 响应时间 | Fast/Slow |
| 声音范围 (dB) | 30 to 130dB |
| 声音范围 (dB) 基本精度 | ±1.4dB |
| 模拟输出 | AC/DC |
| 麦克风 | Condenser, 0.5” (12.7mm) |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 10 × 2.9 × 2" (255 × 75 × 50mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 12.3oz (350g) |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD600 Software
User Manual
Extech HD600 User Manual
Certification
Extech HD600 Declaration of Conformity
Datasheet
Extech HD600 Datasheet
