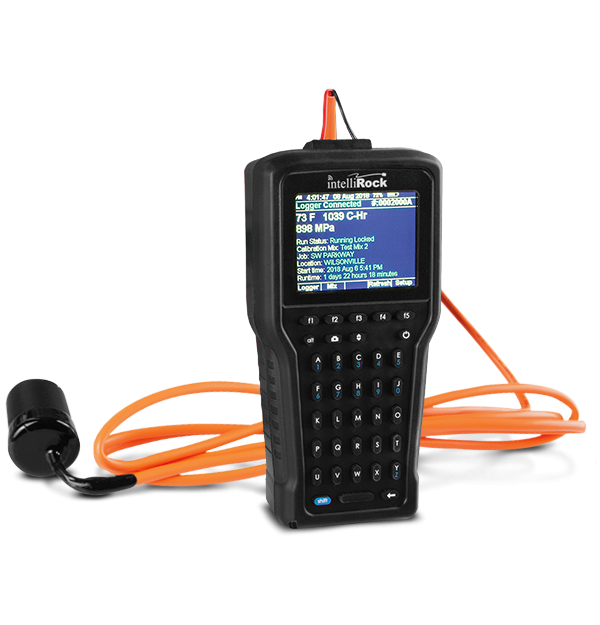

intelliRock III Reader
Concrete Strength and Temperature Profiling System
The intelliRock III reader provides connectivity to loggers in the field so critical decisions can be made at the touch of a button. You can easily activate loggers to start tracking key data points during concrete curing. It features a built–in thermal imager for temperature profiling and onsite problem detection. Use the reader to input important notes and jobsite or location information specific to that logger.
规格
| 成像与光学 | |
|---|---|
| 热像仪 | 160 × 120 resolution thermal imager |
| 测量与分析 | |
|---|---|
| 成熟度 | Yes |
| 时间 | Yes |
| 时间精度 | 1 minute per month |
| 最大存储时间和温度 | 85°C (185°F) for 5 years |
| 最大温度测量量程 | -20°C to 125°C (23°F to 257°F) |
| 校准曲线 | Holds 5 calibration curves for strength conversions |
| 温度 | Yes |
| 温度分辨率 | 1°C (1.8°F) |
| 温度测量速率 | 1 minute (resolution for min/max) |
| 温度精度 | ±1°C, -20 to 80°C (4 to 176°F), ±2°C, 80 to 99°C (176 to 210.2°F) |
| 记录器数据存储 | 999 logger downloads |
| 过载剂量率范围 | 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h) |
| 通讯与数据存储 | |
|---|---|
| PC接口 | USB and Bluetooth |
| 用户界面 | |
|---|---|
| 事件 | 6+ max and min temperature |
| 备注 | 8+ job site names and logger locations |
| 电源 | |
|---|---|
| 电池 | Rechargeable |
| 环境与认证 | |
|---|---|
| 工作温度 | -20°C to 99°C (-4°F to 210.2°F) |
| 通用阅读器技术参数，工作温度 | -5° to 50°C (23° to 122°F) |
