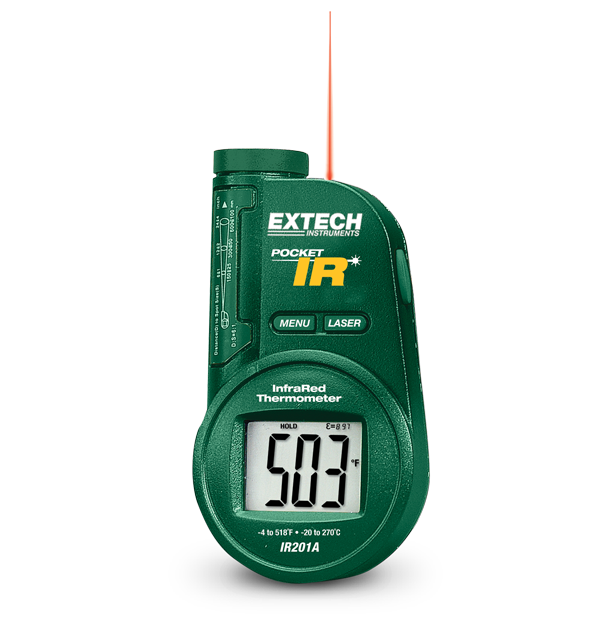

Extech IR201A
Pocket IR Thermometer
The Extech IR201A is a wide range non-contact Infrared Thermometer with a built-in laser pointer to identify target areas and improve aim. It has a wide temperature range of -20°C to 270°C (-4°F to 518°F), adjustable emissivity for better accuracy on different surfaces, and a lock mode for continuous scanning, all in a convenient, pocket-sized design. The IR201A features data hold, max hold, auto power off functions. Complete with two AAA batteries and pouch case.
规格
| 一般参数 | |
|---|---|
| 发射率 | 0.1 to 1.0, adjustable |
| 温度 (RTD) | 0.1 °F/ °C |
| 温度（红外）基本精度 | -4 to 518 °F (-20 to 270 °C) |
| 温度（红外）最大分辨率 | ±2.5% of reading + 3.6 °F/2 °C |
| 目标 | single laser |
| 距离系数比 | 6:1 |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 3.7 × 2 × 1" (94 × 51 × 25mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 2.7oz (76g) |
资源和支持
Datasheet
Extech IR201A Datasheet
User Manual
Extech IR201A User Manual
Certification
Extech IR201A Declaration of Conformity
