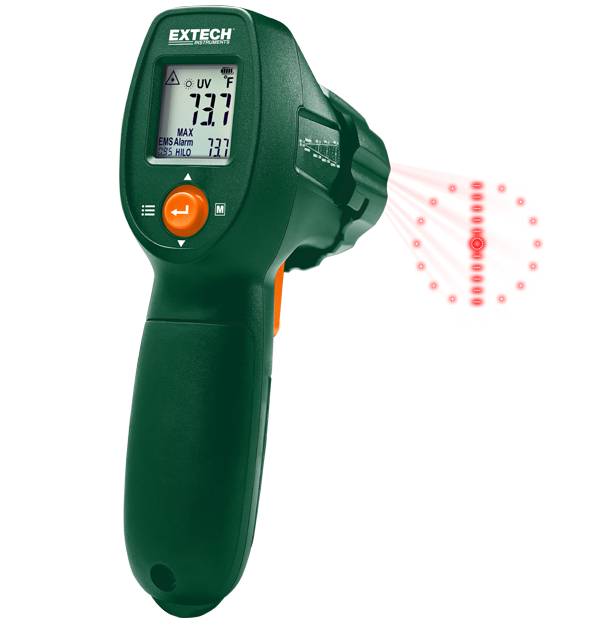

Extech IR300UV
IR Thermometer with UV Leak Detector
The Extech IR300UV is a professional 4-in-1 IR Thermometer, UV Leak Detector, bright flashlight, and a unique coaxial distance to spot guidance laser. This combination meter helps you take quick temperature readings on unsafe surfaces while the circular laser shows you the area being measured to maintain accurate measurement distance. Its UV light easily reveals refrigerant leaks in combination with a standard UV dye (not included) on AC units, pipes, and automotives. Convenient built-in bright flashlight will help you do your job in dark environment. Complete with three AA batteries.
规格
| 一般参数 | |
|---|---|
| 发射率 | 0.10 to 1.00, adjustable |
| 可重复性 | ±0.8% of reading or ±2 °F/ ±1 °C (whichever is greater) |
| 温度 (RTD) | 0.2 °F, 0.1 °C |
| 温度（红外）基本精度 | -22 to 932 °F (-30 to 500 °C) |
| 温度（红外）最大分辨率 | ±1.5% of reading or ±3 °F/ ±1.5 °C (whichever is greater) |
| 目标 | coaxial laser pattern |
| 距离系数比 | 12:1 |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 4.1 × 2.1 × 7.3" (104 × 54 × 185mm) |
| 电源 | 3 × AA (1.5V) batteries |
| 认证 | CE |
| 重量 | 10.6oz (300g) |
资源和支持
Datasheet
Extech IR300UV Datasheet
User Manual
Extech IR300UV User Manual
Certification
Extech IR300UV Declaration of Conformity
