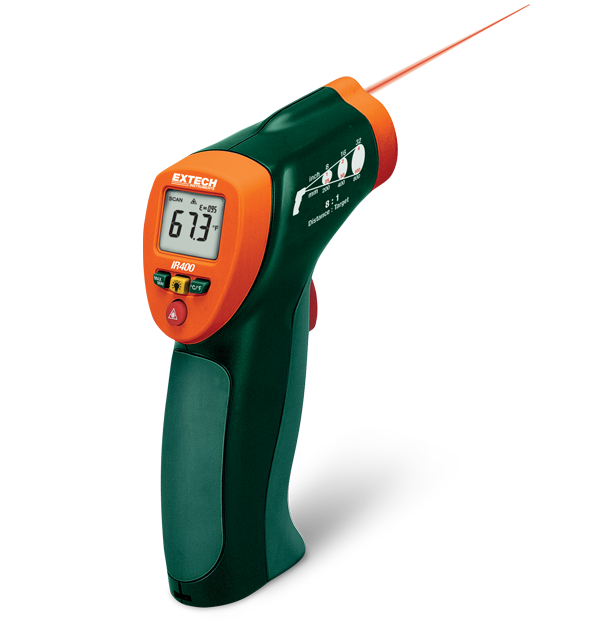

Extech IR400
迷你红外测温仪
Product Variations
IR400 是一款紧凑型测温仪，可测量最大 332°C 的温度，其内置的激光指示器，可识别目标区域和改进对准。背光照明显示器方便夜晚或在环境光线较暗的环境中进行测量。采用固定发射率 0.95，可适用于 90% 的表面应用。配有 9V 电池和便携箱。
规格
| 一般参数 | |
|---|---|
| Distance to Target Ratio | 8:1 |
| Emissivity | 0.95（固定） |
| Targeting | 单激光 |
| Temperature [IR] Basic Accuracy | ±4°C @ -20°C 至 -7°C ±（读数的 2% + 2°C）@ -7°C 至 343°C |
| Temperature [IR] Max Resolution | 0.1 °C @ -20°C 至 -343°C |
| 其他详情 | |
|---|---|
| Certifications | IR400-NIST_S：CE、NIST IR400_S：CE |
| Dimensions | 82 × 41.5 × 160mm |
| Power | 1 节 9V 电池 |
| Warranty | 2 年 |
| Weight | 180g |
Resources & Support
User Manual
Extech IR400 User Manual
Datasheet
Extech IR400 Datasheet
Certification
Extech IR400 Declaration of Conformity
