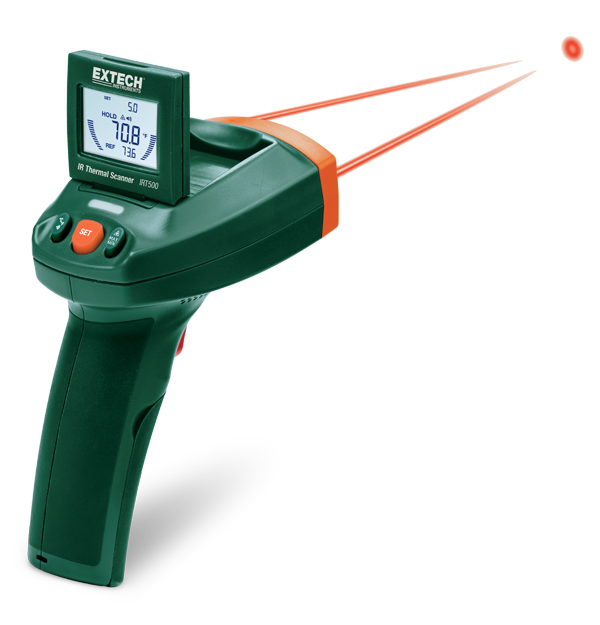

Extech IRT500
Dual Laser IR Thermal Scanner with Adjustable Display
More than just an IR Thermometer, the Extech IRT500 IR Thermal Scanner is designed with a dual laser, an audible/visual alarm feature, 5 preset threshold settings (1°, 5°, 10°, and set min/max), and 3 color LED indicators to make it easy to locate hot and cold spots quickly. Users simply point at targets and scan. The 3 color LED indicates high (red), normal (green), or low (blue) when scanning for temperature irregularities. Likewise, the audible alarm increases as temperature increases or decreases. It features a fast, 150 millisecond response for capturing spikes in temperature. The dual laser indicates ideal measuring distance where the 2 lasers converge to a 2.5 cm (1 in) target spot. Other features include a tilt adjustable LCD display with bright white backlight and dual barographs. Trigger lock function provides continuous use for scanning large areas. Comes with 9 V battery, carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 发射率 | 0.95, fixed |
| 温度 (RTD) | 0.1 °F/ °C |
| 温度（红外）基本精度 | -22 to 500 °F (-30 to 260 °C) |
| 温度（红外）最大分辨率 | ±(1% of reading + 3.3 °F/1.5 °C) |
| 目标 | dual laser |
| 距离系数比 | 20:1 |
| 颜色转换阈值 | 1°, 5°, 10°,set Min, set Max |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 5.7oz (163g) |
资源和支持
Datasheet
Extech IRT500 Datasheet
User Manual
Extech IRT500 User Manual
Certification
Extech IRT500 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
