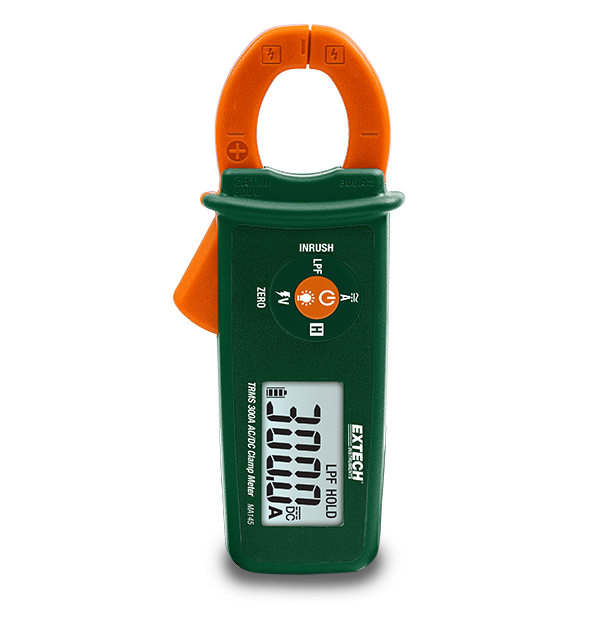

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 60A, 300A |
| 交流电流基本精度 | ±1.5% |
| 交流电流最大分辨率 | 0.01A |
| 直流电流 | 60A, 300A |
| 直流电流基本精度 | ±1.5% |
| 直流电流最大分辨率 | 0.01A |
| 真有效值 | Yes |
| 钳口尺寸 | 0.8" (22mm), conductors up to 300MCM |
| 非接触式试电笔 (NCV) | 80 to 600VAC |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| 电源 | 2 × LR44 (1.5V) batteries |
| 认证 | CE, UL |
| 重量 | 4.9oz (140g) |
资源和支持
User Manual
Extech MA145 User Manual
Certification
Extech MA145 Declaration of Conformity
Datasheet
Extech MA140 MA145 Datasheet
