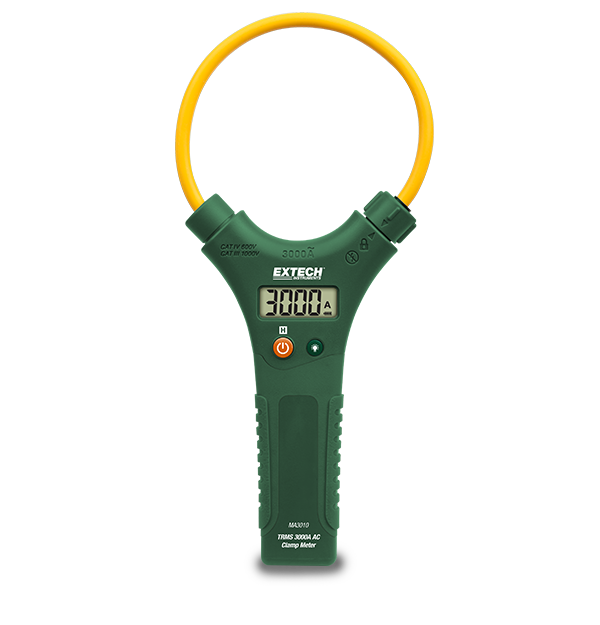

Extech MA3010
3000A True RMS AC Flex Clamp Meter
The Extech MA3010 is a 3000A True RMS AC Flex Clamp Meter. The MA3010 features a 25.4 cm (10 in) flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted, or non-sinusoidal waveforms. Complete with two AAA batteries. UL listed and CAT IV 600V safety rating.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A |
| 交流电流基本精度 | ±(3% of reading + 5 digits) |
| 交流电流最大分辨率 | 0.01A |
| 真有效值 | Yes |
| 钳口尺寸 | 10" (25.4cm) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 11 × 4.7 × 1" (280 × 120 × 25mm) |
| 显示屏 | 3000-count segment LCD with backlighting |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, UL |
| 重量 | 6oz (170g) |
资源和支持
Datasheet
Extech MA3010-MA3018 Datasheet
User Manual
Extech MA3010 MA3018 User Manual
Certification
Extech MA3010 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
