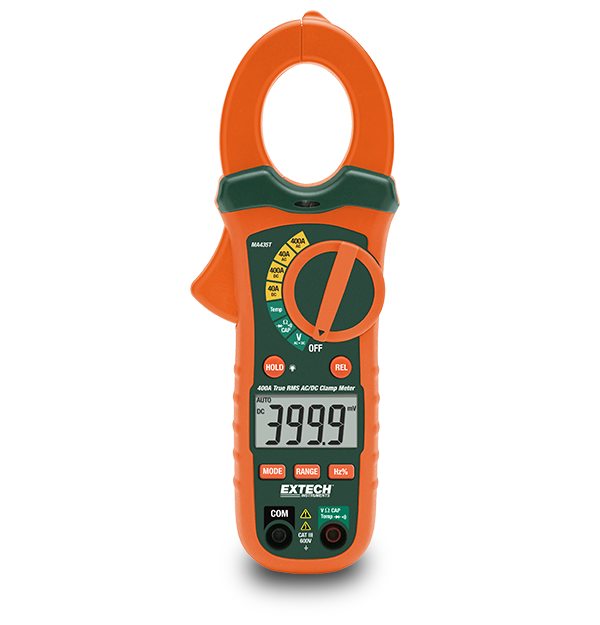

Extech MA435T
400A True RMS AC/DC Clamp Meter + NCV
The Extech MA435T is a compact, 400 A AC Clamp Meter that enables users to take measurements in tight spaces. The 30 mm (1.2 in) jaw opening can accommodate conductors up to 350 MCM. Featuring a large, four digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb dial selector is ergonomically placed for convenient, one-hand operation. It also has True RMS for better accuracy when measuring distorted waveforms. The MA435T’s multimeter functions include AC/DC voltage and current, resistance, capacitance, frequency, diode test, duty cycle, continuity, and thermocouple temperature. Also built into the MA435T is the non contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include data hold, auto power off, and low battery indication. Comes with test leads, 9 V battery, soft carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 600V |
| 交流电压基本精度 | ±(1.5% of reading + 5 digits) |
| 交流电压最大分辨率 | 0.1mV |
| 交流电流 | 400A |
| 交流电流基本精度 | ±(2.5% of reading + 8 digits) |
| 交流电流最大分辨率 | 0.01A |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1400 °F/-20 to 760 °C |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（N 型）基本精度 | 0.1°F/°C |
| 电容 | 100µF |
| 电容最大分辨率 | 0.01nF |
| 电阻 | 40MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±(1.5% of reading + 2 digits) |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 400A |
| 直流电流基本精度 | ±(2.5% of reading + 5 digits) |
| 直流电流最大分辨率 | 0.01A |
| 真有效值 | Yes |
| 钳口尺寸 | 1.2" (30mm), conductors up to 350MCM |
| 非接触式试电笔 (NCV) | Yes |
| 频率 | 10Hz to 10kHz |
| 频率基本精度 | ±(1.5% of reading + 2 digits) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 7.8 × 2.8 × 1.6" (197 × 70 × 40mm) |
| 显示屏 | 4000-count segment LCD |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 6.5oz (183g) |
