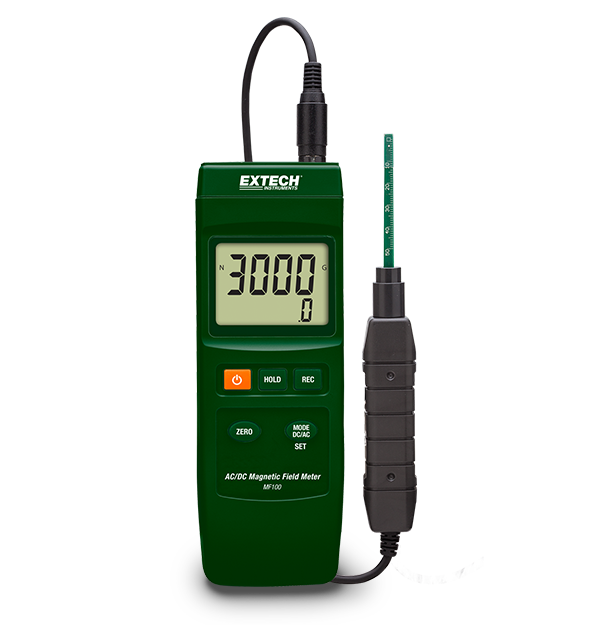

Extech MF100
交流/直流磁场测定仪
MF100 是一款交流/直流磁场测定仪。该磁场测定仪可通过霍尔效应传感器实现自动温度补偿。产品配有单轴磁探针传感器和保护盖、9V 电池和硬质便携箱。
Specifications
| 一般参数 | |
|---|---|
| Electromagnetic Field [Gauss] | 交流：1500.0G、15,000G；直流：3000.0G、30,000G |
| Electromagnetic Field [Gauss] Basic Accuracy | 交流：±（读数的 5% + 20 位数）；直流：±（读数的 5% + 10 位数） |
| Electromagnetic Field [Gauss] Max Resolution | 0.1G、1G |
| Electromagnetic Field [Tesla] | 交流：150.00mT、1500.0mT；直流：300.00mT、3000.0mT |
| Electromagnetic Field [Tesla] Basic Accuracy | 交流：±（读数的 5% + 20 位数）；直流：±（读数的 5% + 10 位数） |
| Electromagnetic Field [Tesla] Max Resolution | 0.01mT，0.1mT |
| Frequency Bandwidth | 50Hz/60Hz |
| Number of Axes | 单轴 |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 195 × 68 × 30 mm |
| Power | 1 节 9V 电池 |
| Warranty | 2 年 |
| Weight | 270g |
