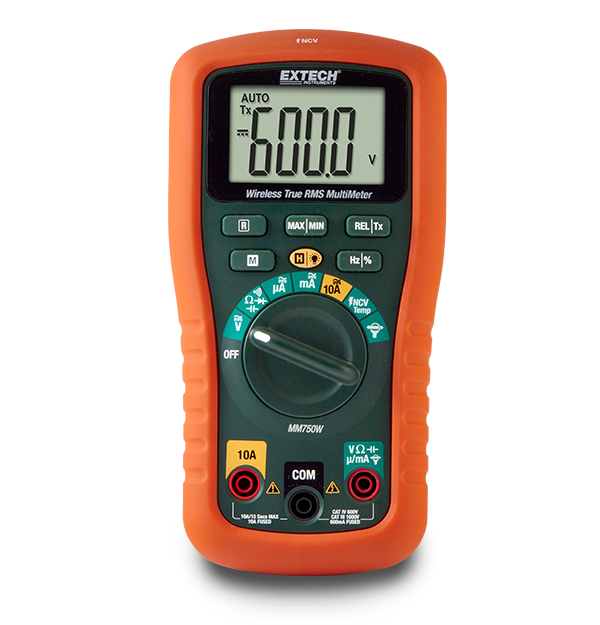

Extech MM750W
Wireless Datalogging CAT IV True RMS Multimeter
Extech’s MM750W is a fully loaded, rugged, Wireless Datalogging Multimeter with 14 functions. It includes non-contact AC voltage detection and Type-K temperature measurement. Using the wireless feature, Bluetooth® data logging module, and the free ExView® W-Series App, you can transmit readings in real-time to your smart devices, store over 15K readings for wireless transfer to generate a report/data analysis, add notes and readings to photos taken from your smart device camera, and use your smart device as a 2nd display for easy viewing or sharing. A smart meter that does not require a clipboard or notepad on the job.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | 3.000V |
| 二极管测试最大分辨率 | 0.001V |
| 交流电压 | 0.1mV to 1000V |
| 交流电压基本精度 | ±0.6% of reading ±3 digits |
| 交流电压最大分辨率 | 0.1mV |
| 交流电流 | 0.1µA to 10.00A, 0.1µA to 6000µA |
| 交流电流基本精度 | ±0.15% of reading ±5 digits |
| 交流电流最大分辨率 | 0.1µA |
| 内存 | 15,360 data points with DAT12 module |
| 占空比 | 0.1 to 99.9% |
| 占空比基本精度 | ±1.2% of reading ±2 digits |
| 占空比最大分辨率 | 0.10% |
| 导通性 | Yes, audible |
| 温度（K 型）最大分辨率 | -40 to 1832 °F (-40 to 1000 °C) |
| 温度（N 型） | ±(2% + 2°F/°C) |
| 温度（N 型）基本精度 | 1°F/°C |
| 电容 | 9.999nF to 99.99mF |
| 电容最大分辨率 | 0.001nF |
| 电阻 | 0.1Ω to 60.00MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 0.1mV to 1000V |
| 直流电压基本精度 | ±0.6% of reading ±2 digits |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 0.1µA to 10.00A, 0.1µA to 6000 µA |
| 直流电流基本精度 | ±0.12% of reading ±5 digits |
| 直流电流最大分辨率 | 0.1µA |
| 真有效值 | Yes |
| 非接触式试电笔 (NCV) | >100VAC |
| 频率 | 9.999Hz to 55.00MHz |
| 频率基本精度 | ±1.5% of reading ±3 digits |
| 频率最大分辨率 | 0.001MHz |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 安全等级 | CATIV - 600V, CATIII - 1000V |
| 尺寸 | 7.4 × 3.8 × 2.2" (188 × 96 × 56mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, UL, FCC |
| 重量 | 14.6oz (415g) |
