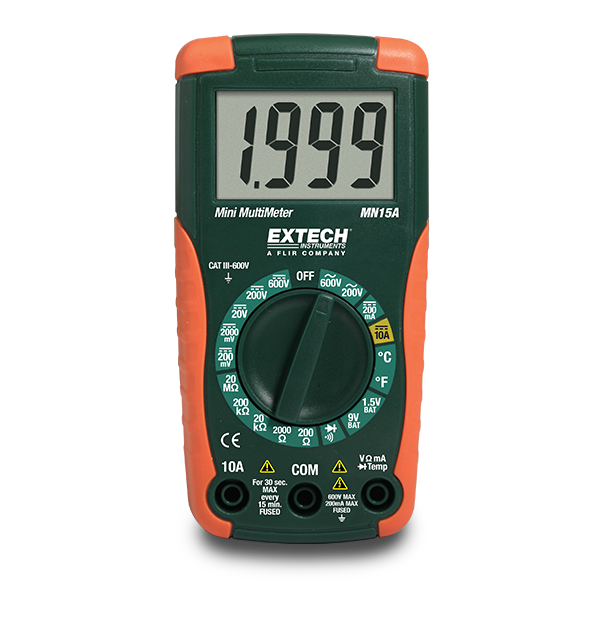

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 600V |
| 交流电压基本精度 | ±1.2% |
| 交流电压最大分辨率 | 0.1V |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 750°C) |
| 温度（N 型） | ±(3% of reading + 9°F/5°C) |
| 温度（N 型）基本精度 | 0.1 ° |
| 电池测试 | 9V & 1.5V Batteries |
| 电阻 | 20MΩ |
| 电阻最大分辨率 | 0.1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电压最大分辨率 | 0.1mV |
| 直流电流 | 10A |
| 直流电流基本精度 | ±1.2% |
| 直流电流最大分辨率 | 0.1mA |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIV - 600V |
| 尺寸 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE, ETL |
| 重量 | 5.4oz (153g) |
资源和支持
User Manual
Extech MN15A User Manual
Certification
Extech MN15A Declaration of Conformity
Datasheet
Extech MN15A-MN16A Datasheet
