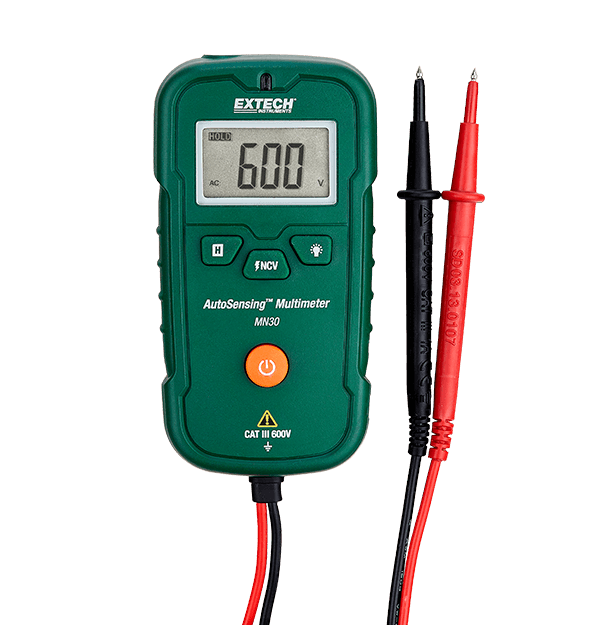

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 600V |
| 交流电压基本精度 | ±(1.5% of reading + 3 digits) |
| 交流电压最大分辨率 | 0.01V |
| 导通性 | <30Ω (beeper) |
| 电阻 | 1Ω to 10MΩ |
| 电阻最大分辨率 | 1Ω |
| 直流电压 | 600V |
| 直流电压基本精度 | ±(1.5% of reading + 3 digits) |
| 直流电压最大分辨率 | 0.01V |
| 真有效值 | Yes |
| 非接触式试电笔 (NCV) | 50 to 600VAC |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, ETL |
| 重量 | 50V to 600V |
资源和支持
Datasheet
Extech MN30 Datasheet
User Manual
Extech MN30 User Manual
Certification
Extech MN30 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
