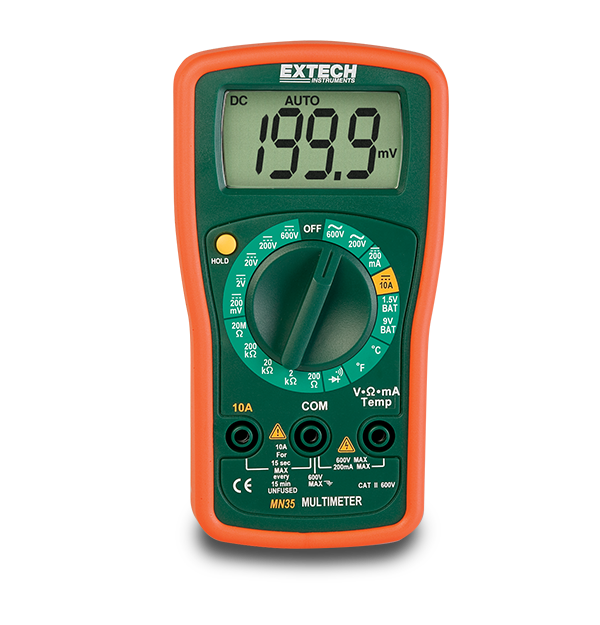

Extech MN35

迷你数字万用表

MN 是一款方便的迷你万用表，带橡胶保护皮套和倾斜支座。可手动测距，测量最大 600V 的交流和直流电压、导通电阻和二极管功能、最大 10A 的直流电流、温度，并可测试 9V/1.5V 电池。含橡胶保护皮套、9V 电池、测试引线和 K 型热电偶探头。

规格

一般参数
AC Voltage 600V
AC Voltage Basic Accuracy ±1.2%
AC Voltage Max Resolution 0.1V
Battery Test 9V 和 1.5V
DC Current 10A
DC Current Basic Accuracy ±1.5%
DC Current Max Resolution 0.1mA
DC Voltage 600V
DC Voltage Basic Accuracy ±0.5%
DC Voltage Max Resolution 0.1mV
Resistance 20MΩ
Resistance Max Resolution 0.1µΩ
Temperature [Type K] Max Resolution -20 至 750°C
Temperature [Type N] ±（读数的 1% + 4°）
Temperature [Type N] Basic Accuracy 1°C
其他详情
Certifications CE
Dimensions 138 × 72 × 38mm
Power 1 节 9V 电池
Safety Category CATII - 600V
Warranty 2 年
Weight 153g

Resources & Support

User Manual

Extech MN35 User Manual GB

下载

Datasheet

Extech MN35-MN36 Datasheet

下载

User Manual

Extech MN35 User Manual

下载
