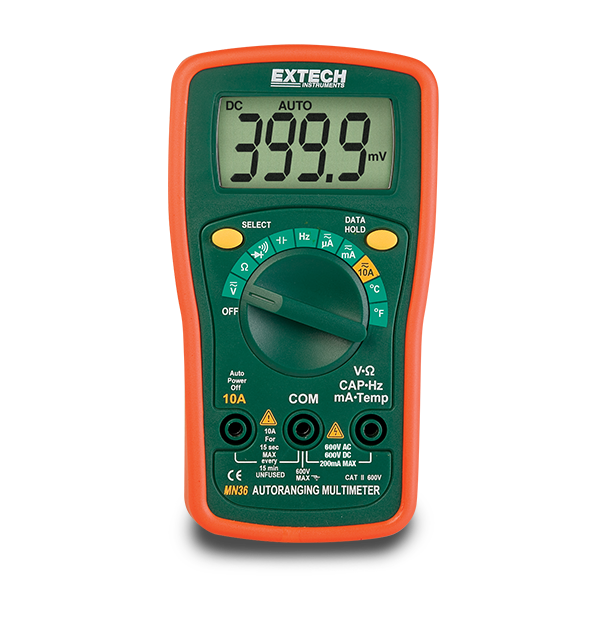

Extech MN36
迷你数字万用表
Extech MN36 数字万用表结构紧凑，但仍具有丰富的功能。MN36 能够测量最高 600V 的交流和直流电压，采用自动量程，这意味着它可以自动显示小数点位置和最大分辨率合适的读数。配有橡胶保护套、2 节 AAA 电池、细珠 K 型热电偶探头和测试引线。
规格
| 一般参数 | |
|---|---|
| AC Current | 10A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0.001nF |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 5MHz |
| Frequency Basic Accuracy | ±1.0% |
| Frequency Max Resolution | 0.01Hz |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature [Type K] Max Resolution | -20 至 750°C |
| Temperature [Type N] | ±（读数的 1% + 4°） |
| Temperature [Type N] Basic Accuracy | 1°C |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 138 × 72 × 38mm |
| Power | 2 节 AAA (1.5V) 电池 |
| Safety Category | CATII - 600V |
| Warranty | 2 年 |
| Weight | 153g |
Resources & Support
User Manual
Extech MN36 User Manual
Datasheet
Extech MN35-MN36 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
