Extech MO260

探针和无探针式温湿度计

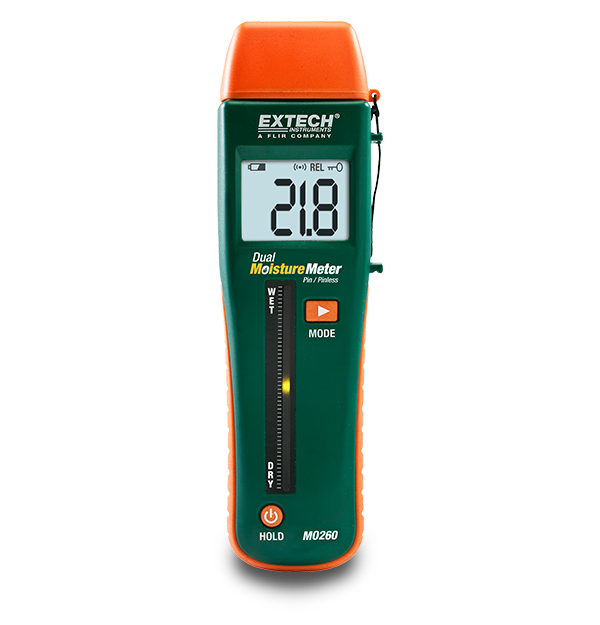

The Extech MO260 is a combination pin/pinless moisture meter that can both measure the relative moisture in wood and other building materials using pinless technology and determine percentage of moisture in sheetrock and other materials using the direct pin method. Measurements are displayed on a digital LCD with backlighting and a tri-color LED bargraph. Pinless non-invasive measurement depth to 22 mm (0.75 in) below the surface. Complete with 9V battery, replacement pins, protective cap, and pouch case.

Take relative pinless moisture reading for non-invasive measurement or determine %WME (wood moisture equivalent) using pin sensors
具有数字液晶显示屏读数功能、背光功能和三色 LED 条形图；具有电池低电量显示功能
A must-have for analyzing the after-effects of water leakage on floors, behind walls, and in ceilings

规格

一般参数
Relative Moisture Content Max Resolution [Pinless] 0.1
Relative Moisture Content [Pinless] 0 至 99.9
Sensor Type Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad
WME Moisture Content Max Resolution [Pin] 0.10%
WME Moisture Content [Pin] 6.0 to 94.8%
其他详情
Certifications CE
Dimensions 8 × 2.3 × 1.7" (203 × 58.4 × 43.2mm)
Power 1 节 9V 电池
Warranty 2 年
Weight 204g

Resources & Support

Datasheet

Extech MO260 Datasheet

下载

Certification

Extech MO260 Declaration of Conformity

下载

User Manual

Extech MO260 User Manual

下载

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
